2009 Lexus LX 570FACTORY OEM SERVICE PROCEDURE
Air Fuel Ratio Sensor: Removal: Removal
- REMOVE FRONT EXHAUST PIPE ASSEMBLY
- Remove the front exhaust pipe assembly. Refer to REMOVAL .
- REMOVE AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)

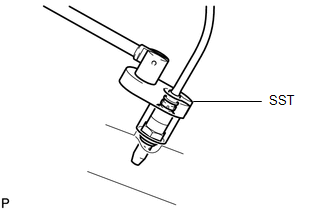

- Using SST, remove the sensor.
- SST: 09224-00010
- Using SST, remove the sensor.
- REMOVE AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1)
- Using SST, remove the sensor.
- SST: 09224-00010
- Using SST, remove the sensor.
