Front Power Seat Control System (Initialization)

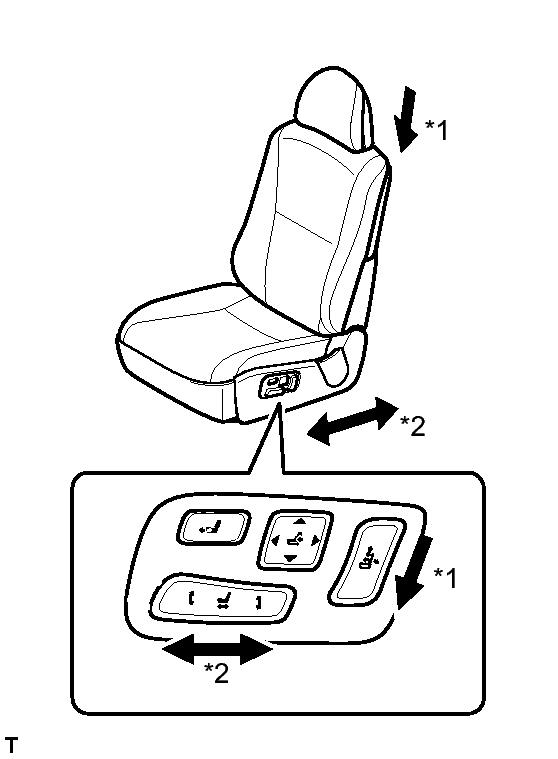

Fig 1: Identifying Power Driver Seat Switch Position

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Turn the power switch ON (IG).
2. Press the front vertical switch of the power seat switch downward 3 times.*1
3. Within 10 seconds of the above operation, begin the following operation: perform the rearward reclining operation and upward lifter operation simultaneously for 10 seconds or more (buzzer sounds for 0.5 seconds).*2 This will cancel the initialization.

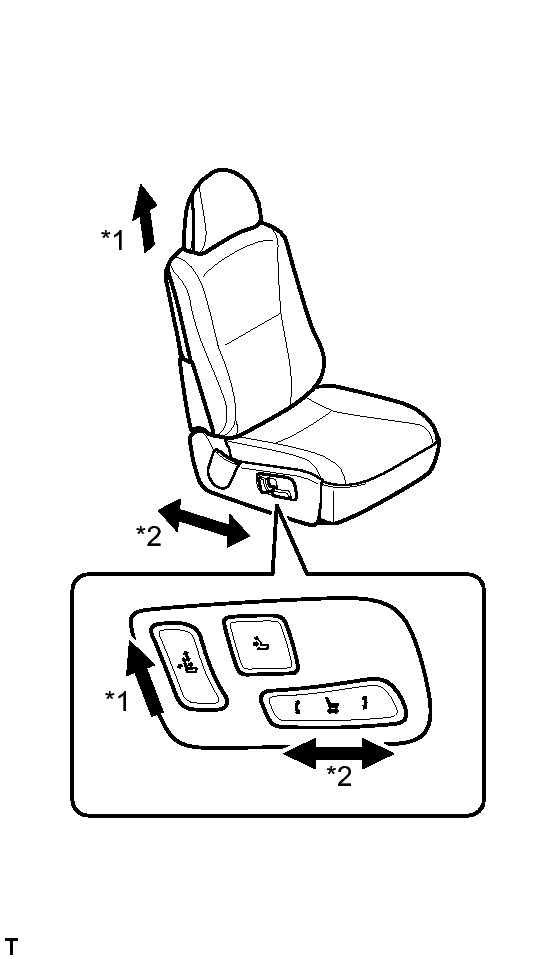

Fig 2: Identifying Power Driver Seat Switch Position

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Perform the initialization cancel operation.
2. Use the slide operation to move the front power seat to the rearmost lock position.*1

   HINT:

   • While performing the slide operation, the buzzer sounds.
   • After the slide operation initialization is complete, the headrest and cushion extender initialization occurs automatically. At this time, the headrest will move to the uppermost position, and the cushion extender will move rearward.
3. Use the reclining operation to move the seatback to the foremost lock position (buzzer sounds for 0.5 seconds).*2
4. Operate the power seat switch and check that the head restraint moves to the lowermost position.*1

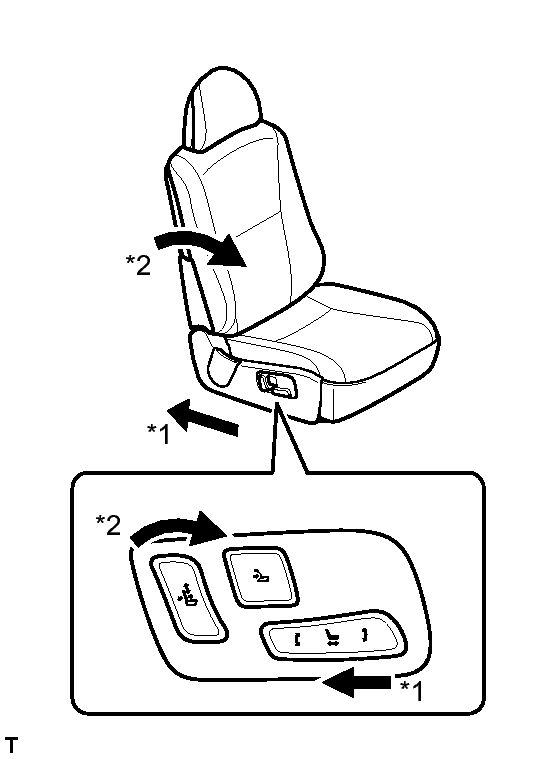

   Fig 3: Identifying Power Driver Seat Switch Position

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Operate the power seat switch and check that the seat slides forward and rearward and that the buzzer does not sound.*2

   HINT:

   After performing all of the procedures above, if the buzzer sounds while performing a manual operation, the initialization was not completed properly. Repeat all of the above procedures.

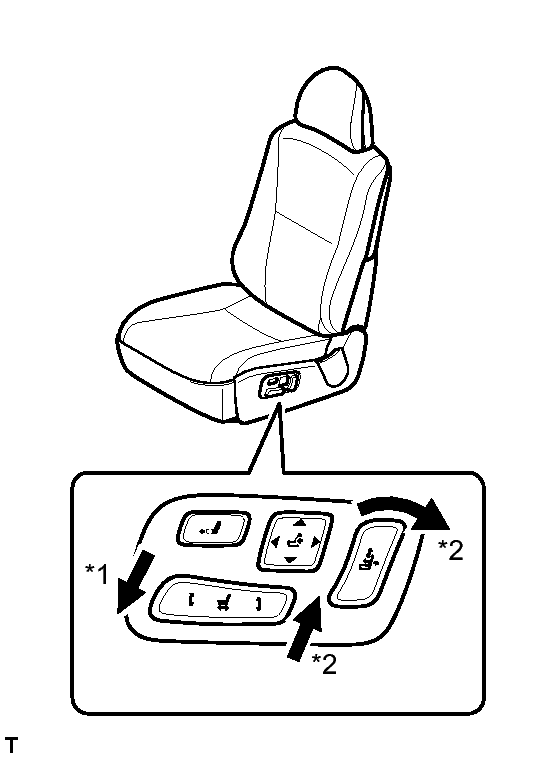

Fig 4: Identifying Power Passenger Seat Switch Position

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Turn the power switch ON (IG).
2. Press the front vertical switch of the power seat switch downward 3 times.*1
3. Within 10 seconds of the above operation, begin the following operation: perform the rearward reclining operation and upward lifter operation simultaneously for 10 seconds or more (buzzer sounds for 0.5 seconds).*2 This will cancel the initialization.

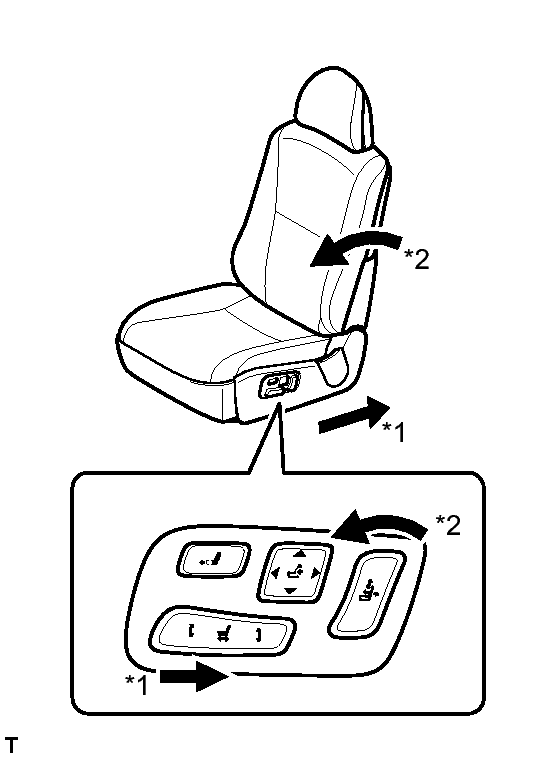

Fig 5: Identifying Power Passenger Seat Switch Position

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

*: for Ottoman

1. Perform the initialization cancel operation.
2. Use the slide operation to move the front power seat to the rearmost lock position.*1

   HINT:

   • While performing the slide operation, the buzzer sounds.
   • After the slide operation initialization is complete, the headrest and lifter initialization occurs automatically. At this time, the headrest will move to the lowermost position, and the lifter will move either upward or downward.
3. Use the reclining operation to move the seatback to the foremost lock position (buzzer sounds for 0.5 seconds).*2
4. Operate the power seat switch and check that the head restraint moves to the uppermost position.*1

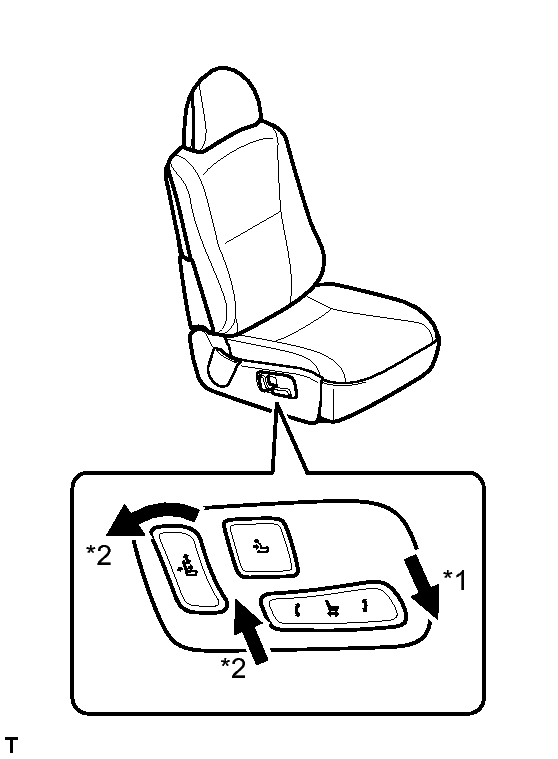

   Fig 6: Checking Seat Slides Forward And Rearward

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Operate the power seat switch and check that the seat slides forward and rearward and that the buzzer does not sound.*2

   HINT:

   • After performing all of the procedures above, if the buzzer sounds while performing a manual operation, perform the rear seat initialization*.
   • After performing all of the procedures above, if the buzzer sounds while performing a manual operation, the initialization was not completed properly. Repeat all of the above procedures.
