Camshaft Oil Control Valve: Removal: Removal
HINT:
When viewed from the rear of the engine assembly, Bank 1 is on the left side and Bank 2 is on the right side.
- REMOVE V-BANK COVER SUB-ASSEMBLY . Refer to REMOVAL - Step 8
- REMOVE AIR CLEANER INLET COVER SUB-ASSEMBLY . Refer to REMOVAL - Step 9
- REMOVE NO. 1 AIR CLEANER INLET . Refer to REMOVAL - Step 10

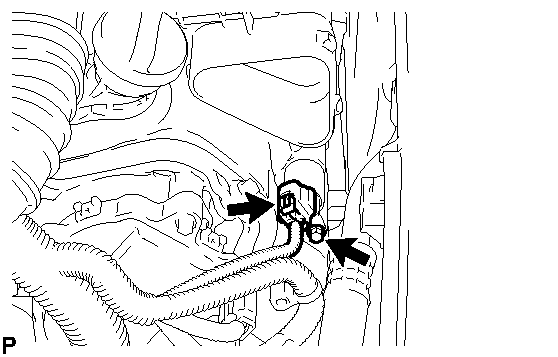

- REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Bank 1)
- Disconnect the oil control valve connector.
- Remove the bolt and oil control valve.
- Remove the O-ring from the oil control valve.

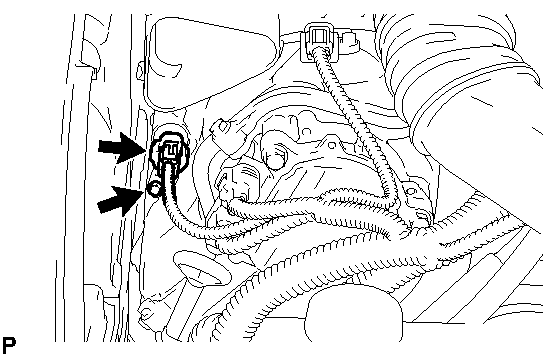

- REMOVE CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY (for Bank 2)
- Disconnect the oil control valve connector.
- Remove the bolt and oil control valve.
- Remove the O-ring from the oil control valve.
