Throttle Body: Installation
- INSTALL THROTTLE BODY ASSEMBLY
- Install a new gasket to the intake manifold.
HINT:

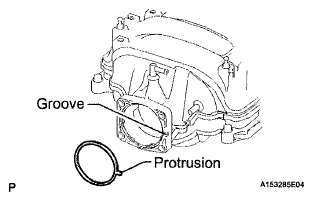

Align the protrusion of the gasket with the groove on the intake manifold.
- Connect the No. 4 and No. 5 water by-pass hoses to the throttle body.NOTE:
- Position the claws of the clamps as shown in the illustration.
- Install the clamps so that they are within the hose's paint marks.
- Install a new gasket to the intake manifold.
