2009 Lexus LS 460L AWDFACTORY OEM SERVICE PROCEDURE

Knock Sensor: Installation

  1. INSTALL KNOCK SENSOR
    1. Install the 4 knock sensors with the 4 bolts so that the sensors are angled as shown in the illustration.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

      HINT:

      The acceptable installation angle of the sensors is between 10° upwards and downwards from the horizontal position.

    2. Connect the 4 knock sensor connectors.

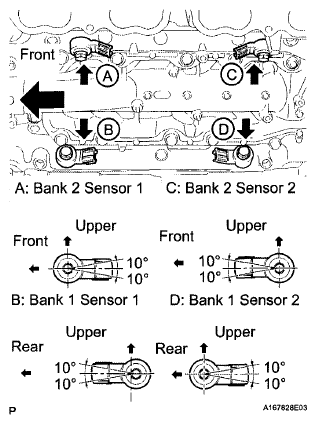

    Fig 1: Locating Knock Sensors With Bolts
    G06190213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL SEPARATOR CASE
    1. Install the separator case with the 4 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

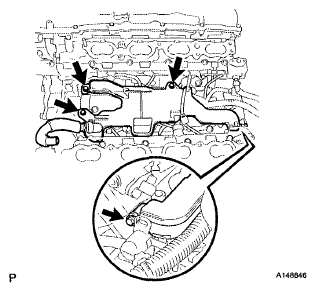

      Fig 2: Locating Separator Case With Bolts
      G06190214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the fuel pressure sensor connector.

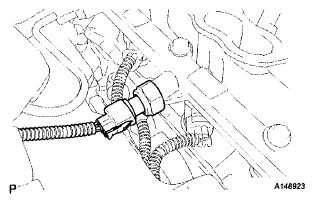

    Fig 3: Identifying Fuel Pressure Sensor Connector
    G06190215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 4 FUEL PIPE SUB-ASSEMBLY  (See INSTALLATION )
  4. INSTALL NO. 2 ENGINE COVER SUB-ASSEMBLY LH  (See INSTALLATION )
  5. INSTALL NO. 2 ENGINE COVER SUB-ASSEMBLY  (See INSTALLATION )
  6. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY  (See INSTALLATION )
  7. INSTALL INTAKE MANIFOLD
    1. Install the intake manifold (See INSTALLATION ).
