2009 Lexus LS 460 RWDFACTORY OEM SERVICE PROCEDURE

Knock Sensor: Removal

  1. REMOVE INTAKE MANIFOLD
    1. Remove the intake manifold (See REMOVAL ).
  2. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY  (See REMOVAL )
  3. REMOVE NO. 2 ENGINE COVER SUB-ASSEMBLY  (See REMOVAL )
  4. REMOVE NO. 2 ENGINE COVER SUB-ASSEMBLY LH  (See REMOVAL )
  5. REMOVE NO. 4 FUEL PIPE SUB-ASSEMBLY  (See REMOVAL )
  6. REMOVE SEPARATOR CASE
    1. Disconnect the fuel pressure sensor connector.

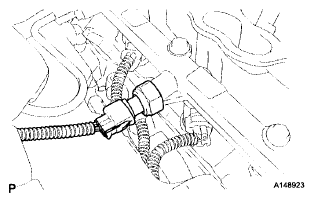

      Fig 1: Identifying Fuel Pressure Sensor Connector
      G06190209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 bolts and separator case.

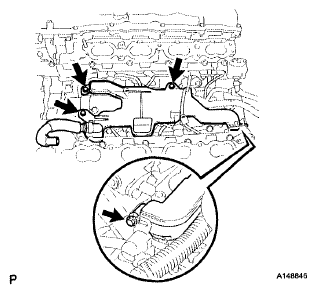

    Fig 2: Locating Separator Case With Bolts
    G06190210Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE KNOCK SENSOR
    1. Disconnect the 4 knock sensor connectors.
    2. Remove the 4 bolts and 4 knock sensors.

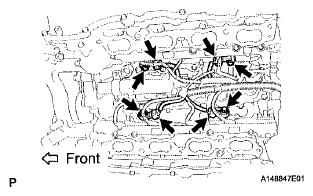

    Fig 3: Locating Knock Sensor Connectors
    G06190211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
