Camshaft Timing Control Motor: Installation
- INSTALL CAMSHAFT TIMING CONTROL WITH EDU MOTOR ASSEMBLY LH

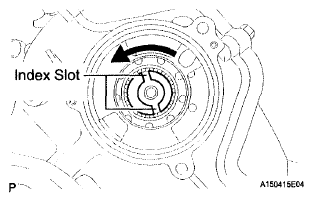

- Turn the camshaft timing gear's intermediate shaft index slot in the counterclockwise direction by hand, and set it to the maximum retard angle position.
HINT:
- When the cam of the camshaft lifts the valve, the intermediate shaft becomes difficult to turn.
- The position where the intermediate shaft stops is the maximum retard angle.
- Install a new O-ring to the timing chain cover.
- Align the joint of the camshaft timing control with EDU motor and the keyway of the camshaft timing gear, and install the motor with the 3 bolts.
Torque: 21 N*m (214 kgf*cm, 15 ft.*lbf)
NOTE:- Do not allow foreign matter to contact the oil seal face of the camshaft timing control with EDU motor (connecting surface with timing chain cover).
- When installing the camshaft timing control with EDU motor, do not use excessive force.
- Do not drop the camshaft timing control with EDU motor. If dropped, replace it.
- Do not disassemble the camshaft timing control with EDU motor. If disassembled, replace it.
- Turn the camshaft timing gear's intermediate shaft index slot in the counterclockwise direction by hand, and set it to the maximum retard angle position.
