2009 Lexus LS 460 AWDFACTORY OEM SERVICE PROCEDURE

System Diagram

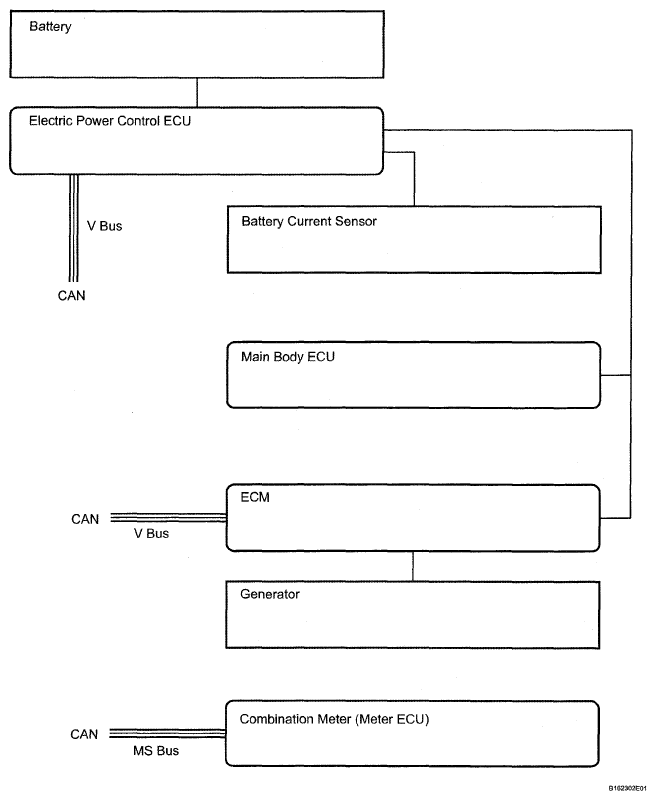

Fig 1: Electric Power Control System Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication table

COMMUNICATION CHART

Sender	Receiver	Signal	Line
ECM	Electric power control ECU	Generator signal	CAN
Electric power control ECU	Combination meter (Meter ECU)	Electrical equipment operation limit signal Battery voltage drop signal Generator check signal	CAN
