2009 Lexus IS FFACTORY OEM SERVICE PROCEDURE
EVAP System: Procedure
- CONFIRM DTC
- Turn the engine switch off and wait for 10 seconds.
- Turn the engine switch on (IG).
- Turn the engine switch off and wait for 10 seconds.
- Connect the Techstream to the DLC3.
- Turn the engine switch on (IG) and turn the Techstream ON.
- Enter the following menus: Powertrain / Engine / Trouble Codes.
- Confirm DTCs and freeze frame data.

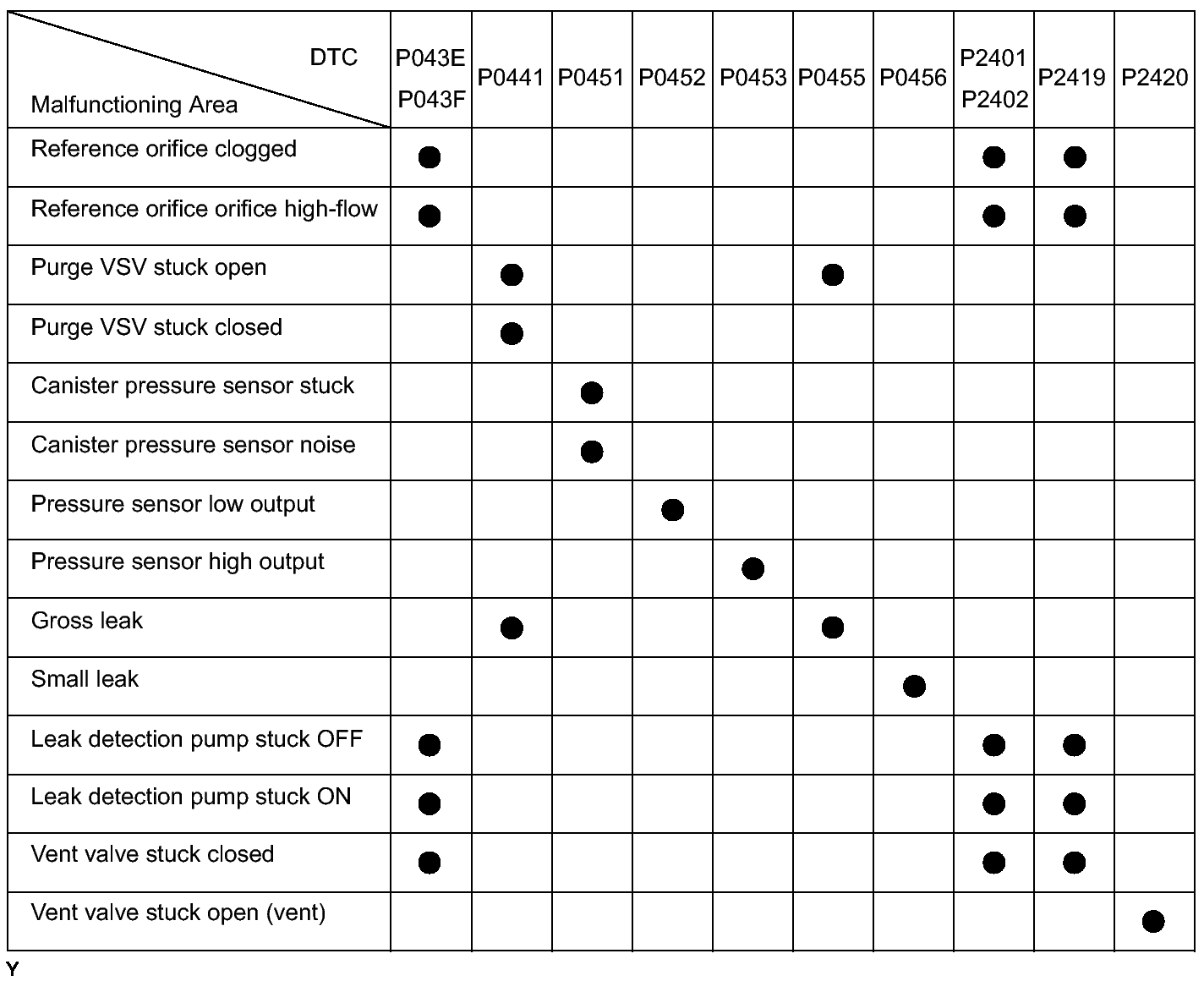

If any EVAP system DTCs are set, the malfunctioning area can be determined using the table below.
