2009 Lexus IS FFACTORY OEM SERVICE PROCEDURE
Mass Air Flow Meter: Removal: Removal
- REMOVE V-BANK COVER SUB-ASSEMBLY . Refer to REMOVAL - Step 2
- REMOVE COOL AIR INTAKE DUCT SEAL . Refer to REMOVAL - Step 3
- REMOVE ENGINE ROOM SIDE COVER RH . Refer to REMOVAL - Step 5

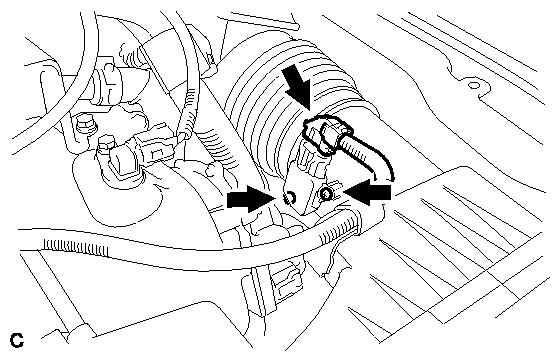

- REMOVE MASS AIR FLOW METER
- Disconnect the mass air flow meter connector.
- Remove the 2 screws and mass air flow meter.
