Mass Air Flow Meter: Inspection: Inspection
- INSPECT MASS AIR FLOW METER

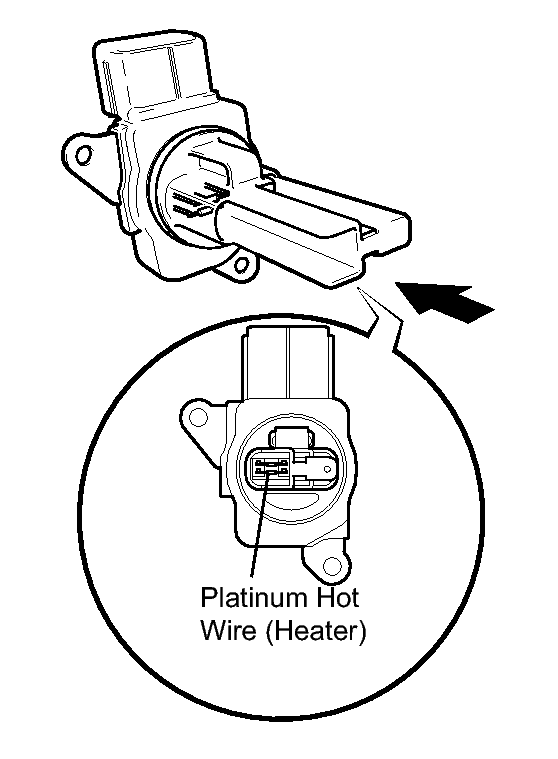

- Perform a visual check for any foreign matter on the platinum hot wire (heater) of the mass air flow meter shown in the illustration.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OK
There is no foreign material.
If the result is not as specified, replace the mass air flow meter.

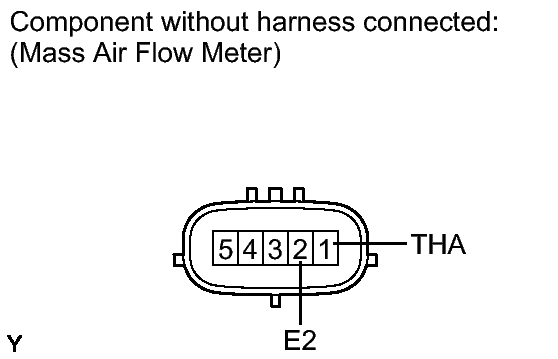

- Measure the resistance between the terminals.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Specified Resistance
Tester Connection Condition Condition 1(THA) - 2(E2) -20°C (-4°F) 13.6 to 18.4 kΩ 20°C (68°F) 2.21 to 2.69 kΩ 60°C (140°F) 0.49 to 0.67 kΩ If the result is not as specified, replace the mass air flow meter.
- Perform a visual check for any foreign matter on the platinum hot wire (heater) of the mass air flow meter shown in the illustration.
