2009 Lexus IS FFACTORY OEM SERVICE PROCEDURE

Heated Oxygen Sensor: Removal: Removal

REMOVE FRONT DOOR SCUFF PLATE LH . Refer to REMOVAL - Step 37
REMOVE FRONT DOOR OPENING TRIM COVER LH . Refer to REMOVAL - Step 39
REMOVE FRONT DOOR SCUFF PLATE RH . Refer to REMOVAL - Step 30
REMOVE FRONT DOOR OPENING TRIM COVER RH . Refer to REMOVAL - Step 31
REMOVE FRONT FLOOR FOOTREST LH . Refer to REMOVAL - Step 3
REMOVE HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)
1. Remove the front floor silencer pad LH.
2. Disconnect the heated oxygen sensor connector.

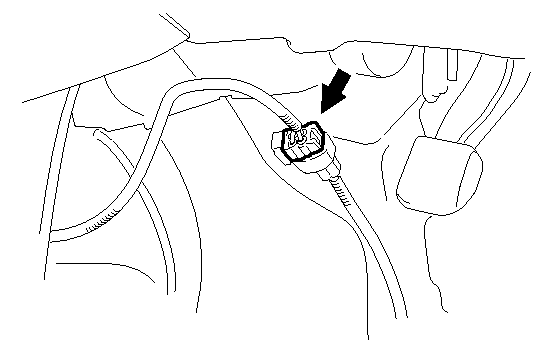

  Fig 1: Locating Heated Oxygen Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the grommet.

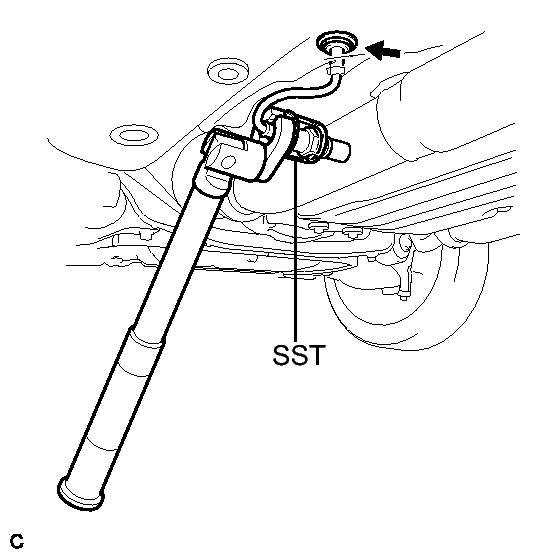

  Fig 2: Removing Heated Oxygen Sensor From Front Exhaust Pipe Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
  - SST: 09224-00010
REMOVE HEATED OXYGEN SENSOR (for Bank 2 Sensor 2)
1. Remove the front floor silencer pad RH.
2. Disconnect the heated oxygen sensor connector.

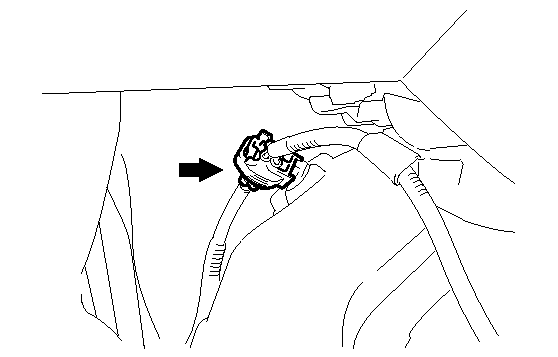

  Fig 3: Locating Heated Oxygen Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the grommet.

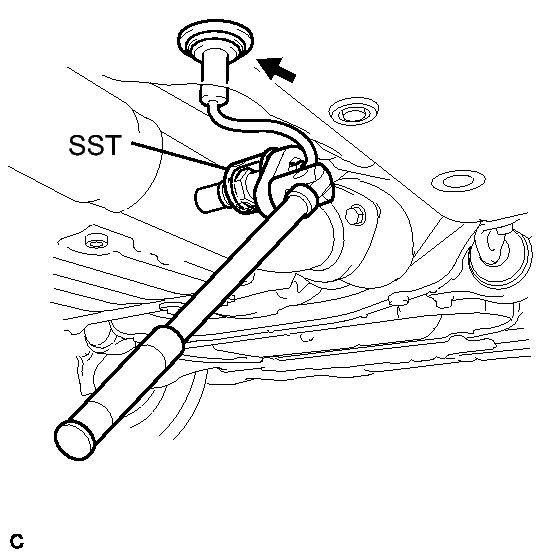

  Fig 4: Removing Heated Oxygen Sensor From Front Exhaust Pipe Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
  - SST: 09224-00010
