2009 Lexus IS FFACTORY OEM SERVICE PROCEDURE

Air Fuel Ratio Sensor: Removal: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL  . Refer to REMOVAL - Step 3
  2. REMOVE ENGINE AND TRANSMISSION
    1. Remove the engine and transmission. Refer to REMOVAL .
  3. REMOVE AIR FUEL RATIO SENSOR (for Bank 1 Sensor 1)
    1. Disconnect the air fuel ratio sensor connector.

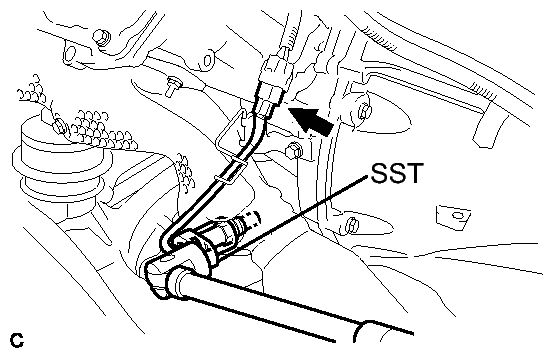

      Fig 1: Locating Air Fuel Ratio Sensor & Connector
      GTY148772Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the air fuel ratio sensor from the exhaust manifold LH.
      • SST: 09224-00010
  4. REMOVE AIR FUEL RATIO SENSOR (for Bank 2 Sensor 1)
    1. Disconnect the air fuel ratio sensor connector.

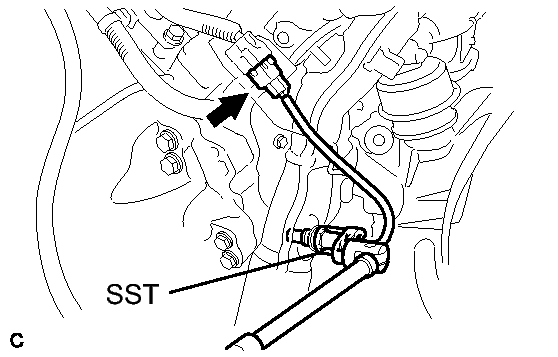

      Fig 2: Removing Air Fuel Ratio Sensor From Exhaust Manifold RH
      GTY148774Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the air fuel ratio sensor from the exhaust manifold RH.
      • SST: 09224-00010
