2009 Lexus IS 250 RWD, AutomaticFACTORY OEM SERVICE PROCEDURE

Vehicle Identification And Serial Numbers

VEHICLE IDENTIFICATION NUMBER

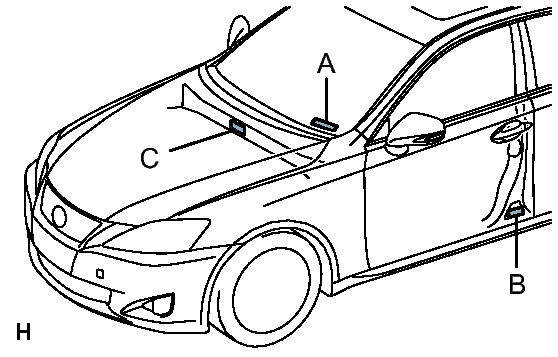

Fig 1: View Of Vehicle Identification Number Labels
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. The vehicle identification number is stamped on the vehicle body and on the certification label, as shown in the illustration.
  A

  Vehicle Identification Number

  B

  Certification Label

  C

  Frame Number
ENGINE SERIAL NUMBER AND TRANSMISSION SERIAL NUMBER

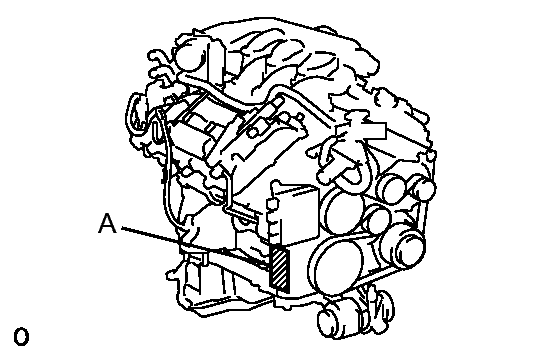

1. The engine serial number is stamped on the cylinder block of the engine as shown in the illustration.
  A

  2GR-FSE, 4GR-FSE

  Fig 2: Identifying Engine Serial Number Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

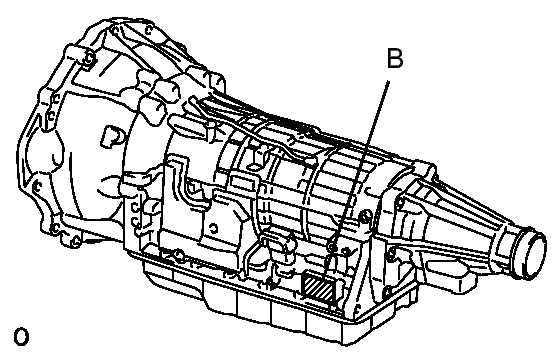

2. The transmission serial number is stamped on the transmission case as shown in the illustration.
  B

  A960E Transmission Serial Number

  Fig 3: Identifying Transmission Serial Number Location
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

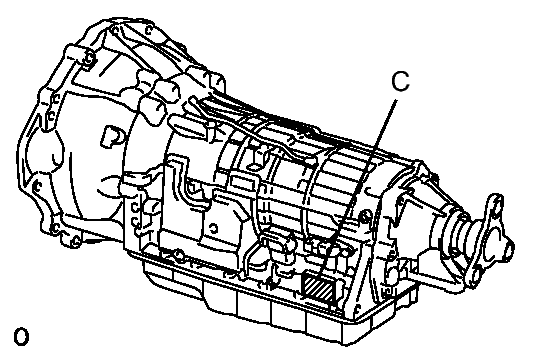

  C

  A760E Transmission Serial Number

  Fig 4: Identifying Transmission Serial Number Location (A760E)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

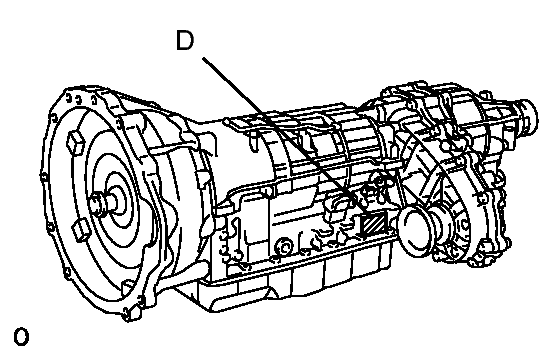

  D

  A760H Transmission Serial Number

  Fig 5: Identifying Transmission Serial Number Location (A760H Transmission Serial Number)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

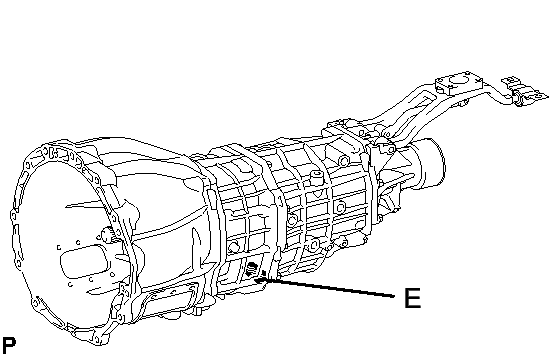

  E

  RA62 Transmission Serial Number

  Fig 6: Identifying Transmission Serial D Number Location (RA62)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
