Heated Oxygen Sensor: Removal: Removal
- REMOVE FRONT SEAT ASSEMBLY RH (for Bank 1 Sensor 2)
Refer to REMOVAL
- REMOVE HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)

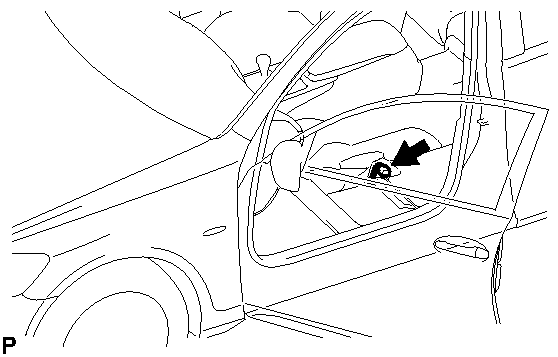

- Disconnect the heated oxygen sensor connector.
- Remove the grommet.

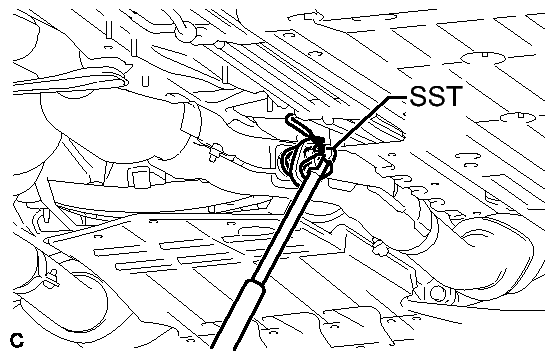

- Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
SST: 09224-00010
- REMOVE FRONT SEAT ASSEMBLY LH (for Bank 2 Sensor 2)
Refer to REMOVAL
- REMOVE HEATED OXYGEN SENSOR (for Bank 2 Sensor 2)

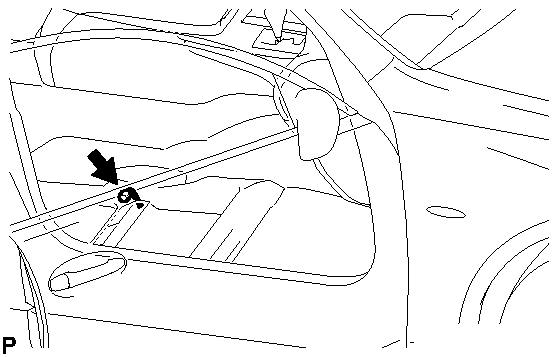

- Disconnect the heated oxygen sensor connector.
- Remove the grommet.

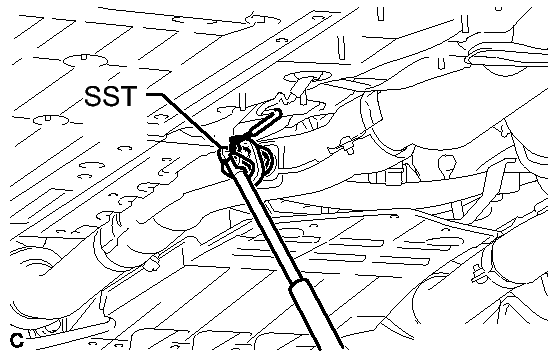

- Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SST: 09224-00010
