2009 Lexus GS 350 RWDFACTORY OEM SERVICE PROCEDURE

Knock Sensor: Inspection: Inspection

INSPECT KNOCK SENSOR
1. Measure the resistance between the terminals.

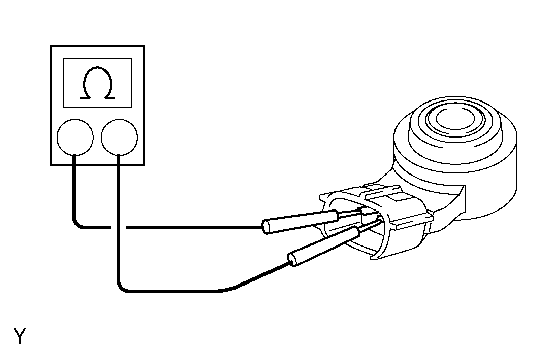

  Fig 1: Measuring Resistance Between Knock Sensor Terminals
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Standard resistance

  120 to 280 kΩ at 20°C (68°F)

  If the result is not as specified, replace the sensor.
