2009 Lexus ES 350FACTORY OEM SERVICE PROCEDURE

Active Control Engine Mount: Removal: Removal

  1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected . Refer to INITIALIZATION .

  2. REMOVE ENGINE UNDER COVER LH
  3. REMOVE ENGINE UNDER COVER RH
  4. REMOVE COOL AIR INTAKE DUCT SEAL  . Refer to REMOVAL - Step 11
  5. REMOVE ENGINE ROOM SIDE COVER LH  . Refer to REMOVAL - Step 13
  6. REMOVE V-BANK COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 14
  7. REMOVE AIR CLEANER INLET ASSEMBLY  . Refer to REMOVAL - Step 16
  8. REMOVE NO. 1 AIR CLEANER INLET  . Refer to REMOVAL - Step 19
  9. REMOVE ENGINE MOUNTING BRACKET FR

    HINT:

    Securely support the automatic transaxle using a jack.

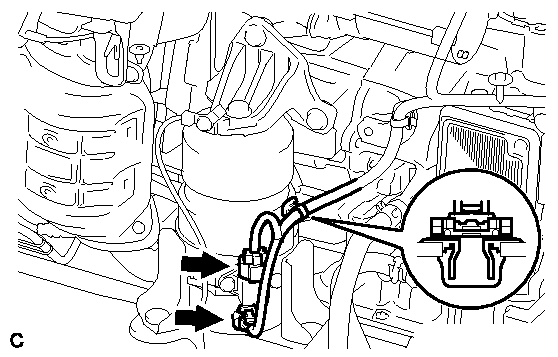

    1. Disconnect the 2 connectors and clamp.
      Fig 1: Identifying Connectors And Clamp
      GTY146464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

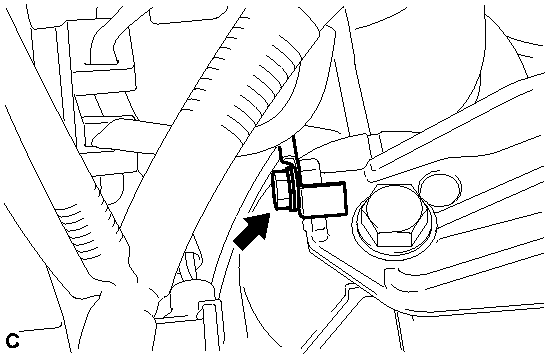

    2. Remove the bolt and disconnect the earth cable.
      Fig 2: Identifying Earth Cable With Bolt
      GTY121797Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

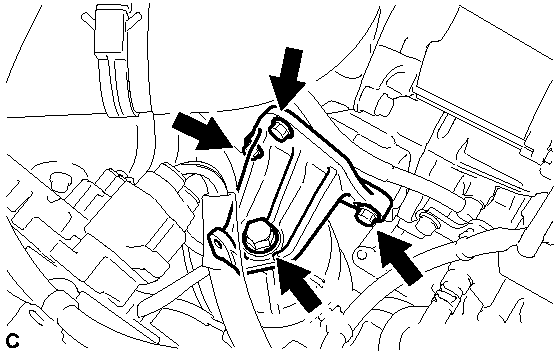

    3. Remove the 4 bolts and engine mounting bracket FR.
      Fig 3: Identifying Engine Mounting Bracket FR And Bolts
      GTY146463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE ACTIVE CONTROL ENGINE MOUNT

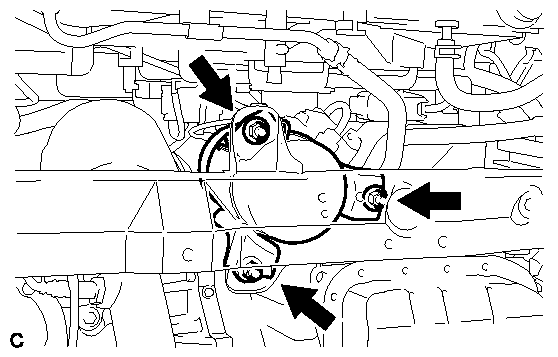

    1. Remove the 3 nuts and active control engine mount.
      Fig 4: Identifying Active Control Engine Mount With Nuts
      GTY132523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

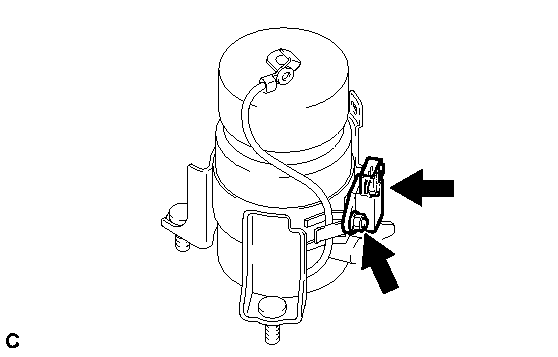

    2. Remove the 2 nuts and acceleration sensor.
      Fig 5: Identifying Acceleration Sensor And Nuts
      GTY130691Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
