2009 Lexus ES 350FACTORY OEM SERVICE PROCEDURE

Front Speed Sensor: Removal: Removal

HINT:

Use the same procedure for the RH side and LH side.
The procedures listed below are for the LH side.

REMOVE FRONT WHEEL
REMOVE FRONT WHEEL OPENING EXTENSION PAD LH . Refer to REMOVAL - Step 6
REMOVE FRONT FENDER LINER . Refer to REMOVAL - Step 8
REMOVE FRONT SPEED SENSOR
1. Disconnect the front speed sensor connector and clamp.

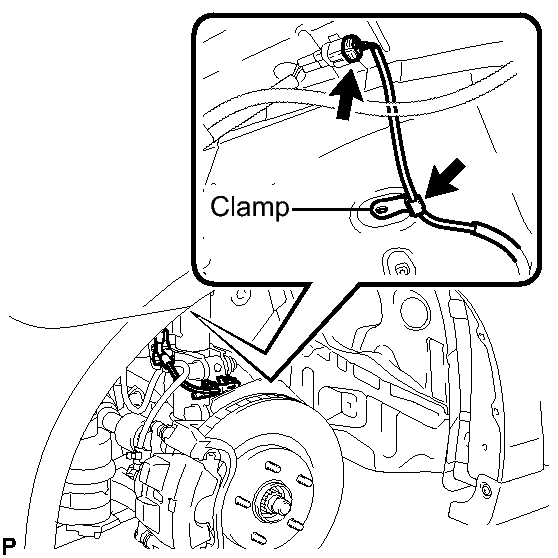

  Fig 1: Locating Front Speed Sensor Connector And Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts from the body and the shock absorber assembly.

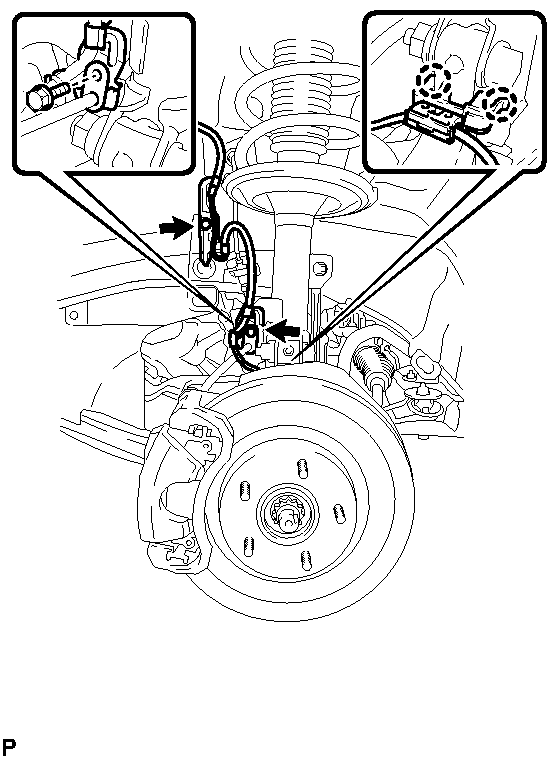

  Fig 2: Locating Bolts And Claws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disengage the 2 claws from the steering knuckle and body.
4. Remove the bolt and the front speed sensor.

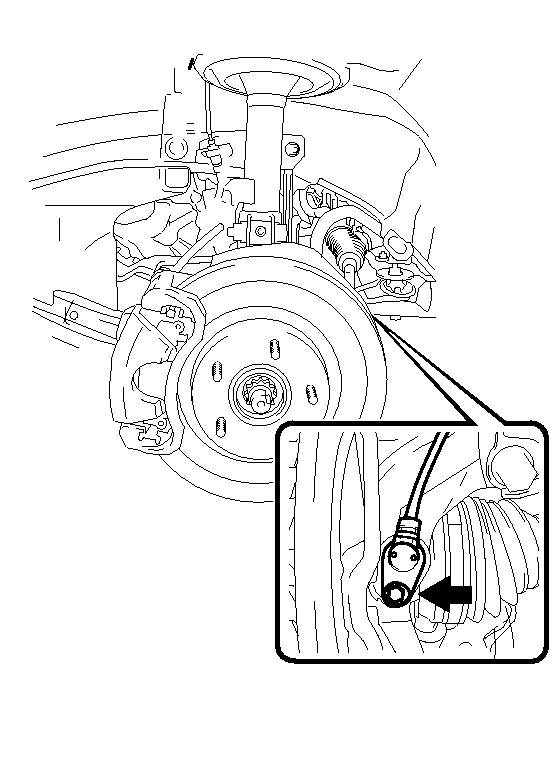

  Fig 3: Locating Front Speed Sensor Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
