Display Check Mode

HINT:

• This mode checks the color display of the multi-display.
• Illustrations may differ from the actual vehicle depending on the device settings and options.

1. Enter diagnostic mode (see DTC CHECK / CLEAR  ).
2. Select "Display Check" from the "Diagnosis MENU" screen.
   Fig 1: Diagnosis Menu Screen Display - Display Check

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Select "Color Bar Check" from the "Display Check" screen.
   Fig 2: Display Check Screen - Color Bar Check

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Select color bar from the "Color Bar Check Mode" screen,

   HINT:

   • The entire screen turns to the color or stripe selected.
   • Touching the display will return to the "Color Bar Check" screen.

HINT:

• This mode checks the touch switch operation condition of the multi-display.
• Illustrations may differ from the actual vehicle depending on the device settings and options.

1. Enter diagnostic mode (see DTC CHECK / CLEAR  ).

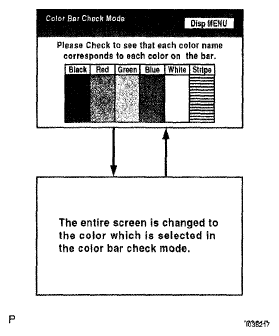

   Fig 3: Display Check Mode (Color Bar Check Mode) Screen

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Select "Display Check" from the "Diagnosis MENU" screen.
   Fig 4: Display Diagnosis MENU Screen - Display Check

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Select "Touch Switch Check" from the "Display Check" screen.
   Fig 5: Display Check Screen - Touch Switch Check

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Touch the display anywhere in the open area to perform the check when the "Touch Switch Check" screen is displayed.

   HINT:

   • A "+" mark is displayed where the display is touched.
   • The "+" mark remains on the display even after the finger is removed.
     Fig 6: Display Touch Switch Check Screen

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

• This mode checks the input of vehicle signals to the multi-display.
• Illustrations may differ from the actual vehicle depending on the device settings and options.

1. Enter diagnostic mode (see DTC CHECK / CLEAR  ).
2. Select "Display Check" from the "Diagnosis MENU" screen.
   Fig 7: Display Diagnosis MENU Screen - Display Check

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Select "Vehicle Signal Check" from the "Display Check" screen.
4. When the "Vehicle Signal Check Mode" screen is displayed, check all the vehicle signal conditions.

   HINT:

   • Only conditions having inputs are displayed.
   • This screen is updated once per second when input signals to the vehicle are changed.
     Fig 8: Display Check Screen - Vehicle Signal Check

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
