2008 Lexus SC 430FACTORY OEM SERVICE PROCEDURE

Radio Receiver: Installation

WARNING: This page is about a different car, the 2007 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. INSTALL RADIO RECEIVER ASSEMBLY
    1. Install the No. 1 bracket with the 2 screws.
    2. Install the No. 2 bracket with the 2 screws.

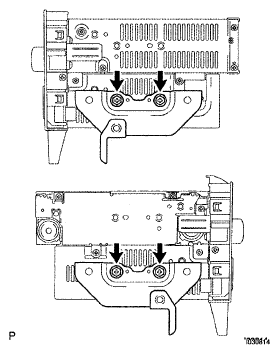

      Fig 1: Locating No. 1, 2 Bracket And Screws
      G05293106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Attach the 2 claws to install the panel.
    4. Install the 4 bolts.
    5. Install the 3 panel retainers with the 4 screws.

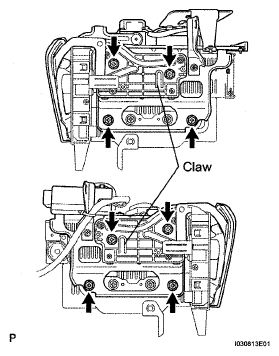

      Fig 2: Identifying Panel Retainers And Screws
      G05293107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY LOWER CENTER
    1. Connect the connector.
    2. Install the panel with the 4 bolts.
      NOTE:
      • If the connector is connected with the battery connected, the system will start initialization.
      • Vibration during initialization may cause problems in the radio receiver.
        Fig 3: Locating Bolts And Panel
        G05293108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL AIR CONDITIONING CONTROL ASSEMBLY (See  INSTALLATION  )
  4. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY (See  INSTALLATION  )
  5. INSTALL REAR CONSOLE UPPER PANEL GARNISH (See  INSTALLATION  )
  6. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  7. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
  8. CHECK SRS WARNING LIGHT (See  INSTALLATION  )
