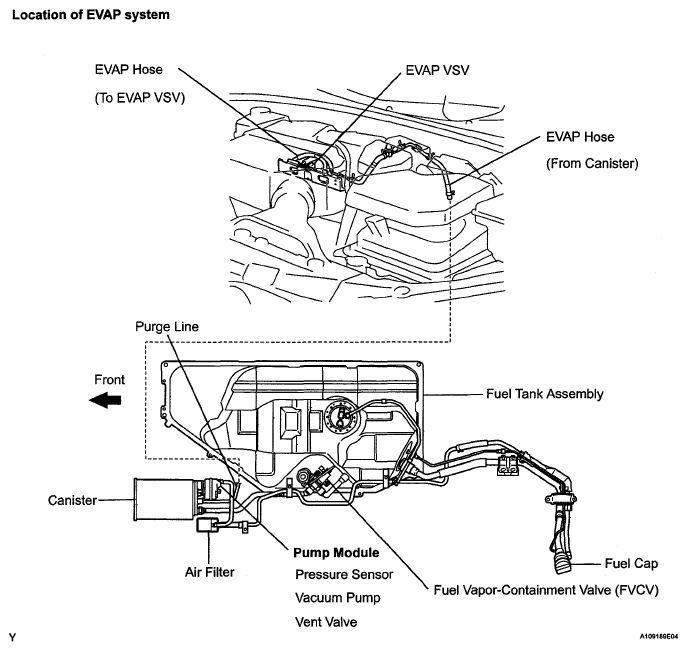

EVAP System: Description
While the engine is running, if a predetermined condition (closed loop, etc.) is met, the EVAP VSV is opened by the ECM (Included in HV control ECU) and stored fuel vapors in the canister are purged to the intake manifold. The ECM will change the duty cycle ratio of the EVAP VSV to control purge flow volume. Purge flow volume is also determined by the intake manifold pressure. Atmospheric pressure is allowed into the canister through the vent valve to ensure that purge flow is maintained when negative pressure (vacuum) is applied to the canister.
The ECM monitors the condition of both the key-off monitor and purge flow monitor to ensure proper operation of the EVAP system.
