2008 Lexus LX 570FACTORY OEM SERVICE PROCEDURE
Pattern Select Switch: Installation
- INSTALL NO. 1 PATTERN SELECT SWITCH ASSEMBLY
- Install the pattern select switch to the position indicator housing and attach the 2 claws.
- Connect the connector.
- INSTALL POSITION INDICATOR HOUSING ASSEMBLY

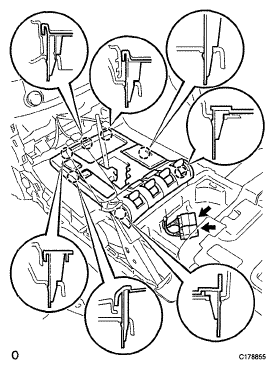

- Attach the 7 claws to install the position indicator housing.
- Connect the 2 connectors.
- INSTALL CONSOLE CUP HOLDER BOX SUB-ASSEMBLY (See INSTALLATION )
- INSTALL PARKING BRAKE HOLE COVER (See INSTALLATION )
- INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (See INSTALLATION )
- INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH (See INSTALLATION )
