2008 Lexus LX 570FACTORY OEM SERVICE PROCEDURE

Throttle Body: Installation

  1. INSTALL THROTTLE BODY ASSEMBLY
    1. Install the 2 water by-pass hoses to the throttle body.
    2. Install a new gasket to the intake air surge tank.

      HINT:

      Align the protrusion of the gasket with the groove of the intake air surge tank.

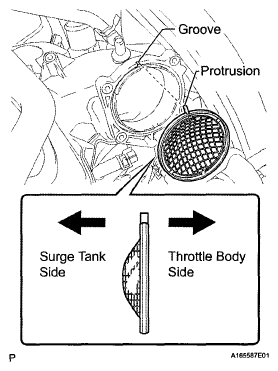

      Fig 1: Identifying Intake Air Surge Tank Gasket
      G05150009Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the throttle body with the 4 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      Fig 2: Locating Water By-Pass Hoses And Throttle Body Bolts
      G05150007Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Connect the throttle position sensor and control motor connector.
    5. Connect the 2 water by-pass hoses.
  2. INSTALL AIR CLEANER HOSE ASSEMBLY  (See INSTALLATION )
  3. ADD ENGINE COOLANT  (See REPLACEMENT )
  4. INSPECT FOR COOLANT LEAK  (See COOLING SYSTEM )
  5. CHECK THROTTLE BODY ASSEMBLY  (See ON-VEHICLE INSPECTION )
    Fig 3: Locating Water By-Pass Hoses And Control Motor Connector
    G05150006Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY  (See INSTALLATION )
  7. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH  (See INSTALLATION )
  8. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH  (See INSTALLATION )
  9. INSTALL V-BANK COVER SUB-ASSEMBLY  (See INSTALLATION )
  10. INSTALL UPPER RADIATOR SUPPORT SEAL  (See INSTALLATION )
  11. INSTALL ENGINE ROOM SIDE COVER RH  (See INSTALLATION )
  12. INSTALL ENGINE ROOM SIDE COVER LH  (See INSTALLATION )
