Knock Sensor: Installation
- INSTALL KNOCK SENSOR

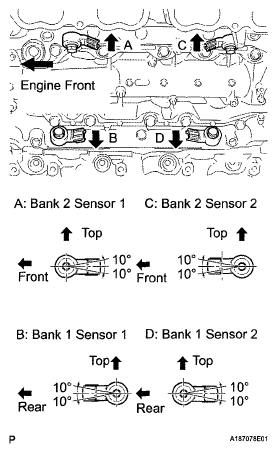

- Install the 4 sensors with the 4 bolts so that the sensors are angled as shown in the illustration.
Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)
NOTE: The acceptable installation angle of the sensor is between 10° upward and downward from the horizontal position. - Connect the 4 sensor connectors.
- Install the 4 sensors with the 4 bolts so that the sensors are angled as shown in the illustration.
- INSTALL NO. 1 ENGINE COVER (See INSTALLATION )
- INSTALL NO. 2 ENGINE COVER (See INSTALLATION )
- INSTALL INTAKE MANIFOLD
- Install the intake manifold (See INSTALLATION ).
