2008 Lexus LX 570FACTORY OEM SERVICE PROCEDURE

Engine Control System - System Descriptions And Testing, On-Vehicle Inspection, Removal And Installation: ECM: Removal

  1. REMOVE ENGINE ROOM SIDE COVER LH  (See REMOVAL )
  2. REMOVE ENGINE ROOM SIDE COVER RH  (See REMOVAL )
  3. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
    NOTE:
    • w/ Navigation System:

    After the engine switch is turned off, the HDD navigation system requires approximately 6 minutes to record various types of memory and settings. As a result, after turning the engine switch off, wait 6 minutes or more before disconnecting the cable from the negative (-) battery terminal.

    • When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
  4. DISCONNECT CONNECTOR HOLDER BLOCK
    1. Remove the 3 bolts and move the connector holder block so that the ECM can be removed in the next step.
    Fig 1: Locating Connector Holder Block Bolts
    G05628227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE ECM

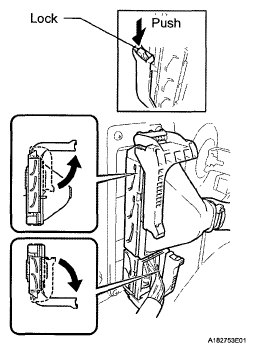

    1. Raise the 2 levers while pushing the locks on the 2 levers.
      NOTE: Make sure that the lock levers are raised 90° as shown in the illustration before disconnecting the connectors. Failure to do this may cause the connectors to break.
    2. Disconnect the 2 connectors.
      Fig 2: Disconnecting Levers
      G05628228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 4 bolts and ECM.
    Fig 3: Locating ECM Bolts
    G05149564Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE GASKET
    1. Peel off the gasket.
      Fig 4: Removing ECM Gasket
      G05757865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Spray gasket remover or equivalent on the remaining tape of the gasket.
      NOTE: When using gasket remover or equivalent, cover the ECM connectors with a cloth.
