2008 Lexus LX 570FACTORY OEM SERVICE PROCEDURE

Windshield Glass: Installation

  1. INSTALL WINDSHIELD GLASS STOPPER
    1. Install 2 new stoppers to the vehicle body as shown in the illustration
      2. Fig 1: Installing Stoppers To Vehicle Body
      G04952187Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 2 WINDSHIELD GLASS STOPPER
    1. Apply Primer G to the glass where the stopper will be installed.
      NOTE:
      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover primer.
      • Do not apply too much primer.
    2. Install 2 new stoppers onto the glass as shown in the illustration.

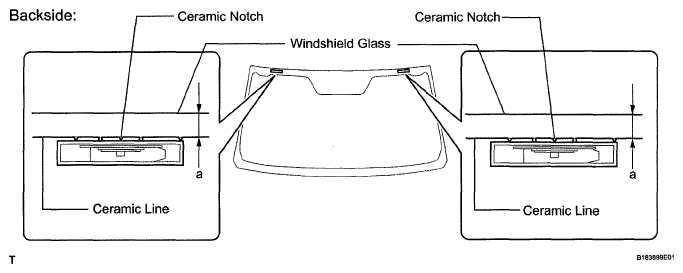

      Fig 2: Identifying Windshield Glass And Ceramic Notch (Backside)
      G05636388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard

      STANDARD SPECIFICATION

      Area Specified Condition
      a 13.2 mm (0.520 in.)
  3. INSTALL WINDSHIELD OUTSIDE MOLDING
    1. Using a brush or sponge, coat the contact surface of the glass and molding with Primer G as shown in the illustration.
      NOTE:
      • Allow the primer coating to dry for 3 minutes or more.
      • Do not coat the adhesive with Primer G.
      • Throw away any leftover primer.

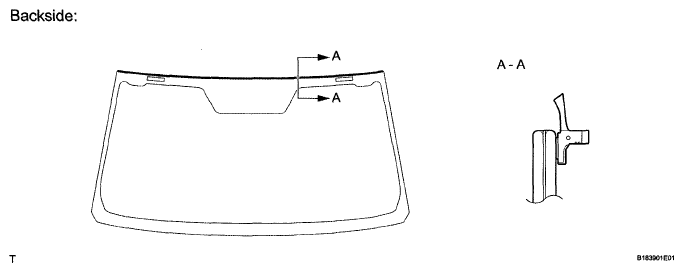

        Fig 3: Identifying Windshield Outside Molding (Backside)
        G05636389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
