2008 Lexus LX 570FACTORY OEM SERVICE PROCEDURE
Power Window Master Switch: Inspection
- INSPECT MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

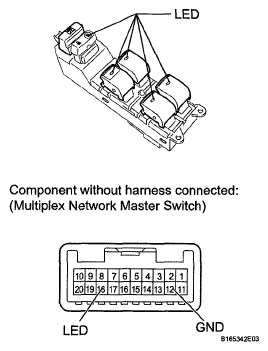

- Check that the LED illuminates.
- Apply battery voltage to the master switch and check that the LED illuminates.
OK
CONDITION CHARTMeasurement Condition Specified Condition Battery positive (+) → 18 (LED)
Battery negative (-) → 12 (GND)LED illuminates If the result is not as specified, replace the multiplex network master switch assembly.
- Apply battery voltage to the master switch and check that the LED illuminates.
- Check that the LED illuminates.
