Fuel Pressure Sensor: Installation
- INSTALL FUEL PRESSURE SENSOR
- Install a new gasket to the sensor.
- Using SST, install the sensor to the fuel delivery pipe.
SST 09922-10010
Torque: without SST
44 N*m (449 kgf*cm, 32 ft.*lbf)
with SST
30 N*m (306 kgf*cm, 22 ft.*lbf)
NOTE:- Do not apply oil to threads of the pressure sensor and delivery pipe.
- Do not allow foreign matter to enter the pipe during the installation.
HINT

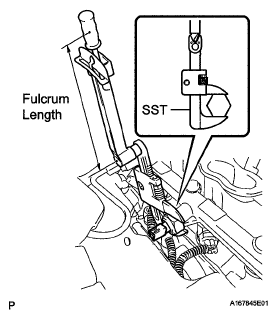

- Use a torque wrench with a fulcrum length of 30 cm (11 8 in.).
- Make sure SST and the torque wrench are connected in a straight line.
- Connect the sensor connector.
- INSTALL NO. 2 ENGINE COVER SUB-ASSEMBLY (See INSTALLATION )
- INSTALL INTAKE MANIFOLD
- Install the intake manifold (see INSTALLATION )
- INSPECT FOR FUEL LEAK (See ON-VEHICLE INSPECTION )
