2008 Lexus LS 600hLFACTORY OEM SERVICE PROCEDURE

Knock Sensor: Installation

HINT:

When viewed from the rear of the engine assembly, Bank 1 is on the left side and Bank 2 is on the right side.

  1. INSTALL KNOCK SENSOR
    1. Install the 4 sensors with the 4 bolts so that the sensors are angled as shown in the illustration.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

      HINT:

      The acceptable installation angle of the sensors is between 10° upwards and downwards from the horizontal position.

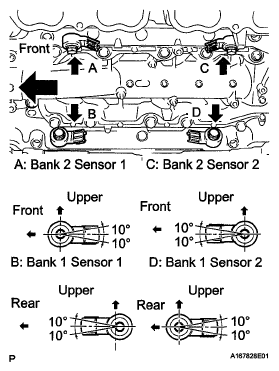

      Fig 1: Locating Knock Sensor And Bolts
      G05771266Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the 4 sensor connectors.
  2. INSTALL SEPARATOR CASE
    1. Install the separator case with the 4 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      Fig 2: Locating Separator Case And Bolts
      G04943090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the fuel pressure sensor connector.
      3. Fig 3: Identifying Fuel Pressure Sensor Connector
      G04943089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 4 FUEL PIPE SUB-ASSEMBLY  (See INSTALLATION )
  4. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY  (See INSTALLATION )
  5. INSTALL NO. 2 ENGINE COVER SUB-ASSEMBLY  (See INSTALLATION )
  6. INSTALL NO. 2 ENGINE COVER SUB-ASSEMBLY LH  (See INSTALLATION )
  7. INSTALL INTAKE MANIFOLD
    1. Install the intake manifold (see INSTALLATION ).
