Terminals Of Ecu

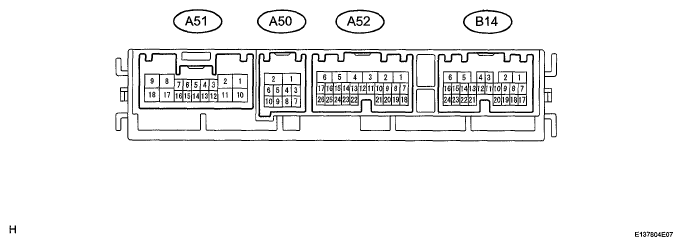

- CHECK FRONT CONTROLLER
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Disconnect the A50 and A52 front controller connectors
- Measure the resistance and voltage according to the value (s) in the table belowCONNECTOR TERMINAL REFERENCE
Terminal No. (Symbols) Wiring Color Terminal Description Condition Specified Condition A52-1 (BATB) - A50-2 (E) P - W-B Power source Always 11 to 14 V A52-5 (ALTB) - A50-2 (E) L - W-B Power source Always 11 to 14 V A50-1 (FMB3) - A50-2 (E) LG - W-B Power source Always 11 to 14 V A50-2 (E) - Body ground W-B - Body ground Ground Always Below 1 Ω A50-5 (FMIG) - A50-2 (E) Y - W-B Ignition power supply Power switch ON (IG) 11 to 14 V Power switch OFF Below 1 V If the result is not as specified, there may be a malfunction on the wire harness side.
- Reconnect the front controller connectors.
- Measure the voltage according to the value (s) in the table below
CONNECTOR TERMINAL REFERENCETerminal No. (Symbols) Wiring Color Terminal Description Condition Specified Condition A51-12 (RDEF) - A50-2 (E) W - W-B Defogger relay Power switch ON (IG) Rear defogger switch ON Below 1 V Power switch ON (IG) Rear defogger switch OFF 11 to 14 V If the result is not as specified, the front controller may have a malfunction.
- CHECK AIR CONDITIONING AMPLIFIER
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
- Disconnect the L76 and L77 air conditioning amplifier connectors
- Measure the resistance and voltage according to the value (s) in the table below
CONNECTOR TERMINAL REFERENCETerminal No. (Symbols) Wiring Color Terminal Description Condition Specified Condition L76-5 (IG+) - L76-1 (GND) V - W-B Ignition power supply Power switch ON (IG) 11 to 14 V Power switch OFF Below 1 V L76-6 (+B1) - L76-1 (GND) L - W-B Battery power source Always 11 to 14 V L76-7 (+B2) - L76-1 (GND) L - W-B Battery power source Always 11 to 14 V L76-1 (GND) - Body ground W-B - Body ground Ground Always Below 1 Ω L76-2 (FGND) - Body ground W-B - Body ground Ground Always Below 1 Ω L77-6 (RGND) - Body ground W-B - Body ground Ground Always Below 1 Ω If the result is not as specified, there may be a malfunction on the wire harness side.
- CHECK DISPLAY AND NAVIGATION ASSEMBLY*1, MULTI-DISPLAY*2, *3
HINT:
- *1 w/ Navigation System (for HDD)
- *2 w/ Navigation System (for DVD)
- *3. w/o Navigation System
- Disconnect the L59 display connector.
- Measure the resistance and voltage according to the value (s) in the table below.
CONNECTOR TERMINAL REFERENCETerminal No. (Symbols) Wiring Color Terminal Description Condition Specified Condition L59-1 (+B1) - L59-10 (GND1) R - W-B Battery power source Always 11 to 14 V L59-3 (IG) - L59-10 (GND1) V - W-B Ignition power supply Power switch OFF Below 1 V Power switch ON (IG) 11 to 14 V L59-10 (GND1) - Body ground W-B - Body ground Ground Always Below 1 Ω If the result is not as specified, there may be a malfunction on the wire harness side
