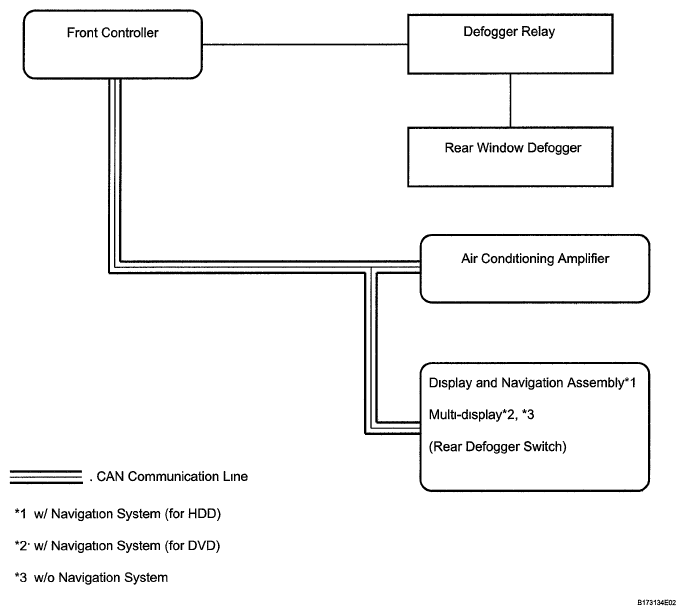

System Diagram
Communication table
| Transmitter | Receiver | Signal | Line |
|---|---|---|---|
| Display and navigation assembly*1 Multi-display*2, *3 |
Air conditioning amplifier | Rear defogger switch signal | CAN |
| Air conditioning amplifier | Front controller | Rear defogger switch signal | CAN |
HINT
|
|||
SYSTEM DESCRIPTION
- GENERAL
The defogger system's thin heater wires are attached to the inside of the rear window and defog the window surface quickly. The indicator light illuminates while the system is operating. The system automatically turns off after approximately 15 minutes
HINT:
The rear window defogger is linked with the mirror defogger.
- FUNCTION OF MAIN COMPONENT FUNCTION OF MAIN COMPONENT
Component Outline Defogger switch Located on A/C control, detects defogger switch operation and transmits signals to front controller through CAN line DEFOG relay Receives rear defogger activation request signals from front controller through air conditioning amplifier and supplies power to rear window defogger Rear window defogger Receives power from DEFOG relay and heats defogger wire - DESCRIPTION FUNCTION CHART
Function Outline Defog rear window surface - Receives rear defogger activation request signals from front controller through air conditioning amplifier and defogs rear window surface
- Receives power from DEFOG relay and heats defogger wire
