2008 Lexus LS 600hLFACTORY OEM SERVICE PROCEDURE
Rear Power Window Switch: Inspection

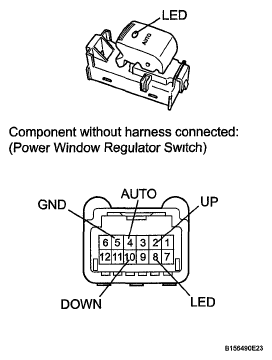

- INSPECT POWER WINDOW REGULATOR SWITCH ASSEMBLY
- Measure the resistance according to the value (s) in the table below.
Standard resistance
STANDARD RESISTANCE SPECIFICATIONTester Connection Switch Condition Specified Condition 2 (UP) - 5 (GND) Manual UP operation Below 1 Ω 10 (DOWN) - 5 (GND) Manual DOWN operation Below 1 Ω 4 (AUTO) - 5 (GND) AUTO UP / DOWN operation Below 1 Ω If the result is not as specified, replace the power window regulator switch assembly.
- Check that the LED illuminates.
- Apply battery voltage to the power window regulator switch and check that the LED illuminates.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
OK
BATTERY VOLTAGE SPECIFICATIONMeasurement Condition Specified Condition Battery positive (+) → 8 (LED)
Battery negative (-) → 5 (GND)LED illuminates If the result is not as specified, replace the power window regulator switch assembly.
- Measure the resistance according to the value (s) in the table below.
