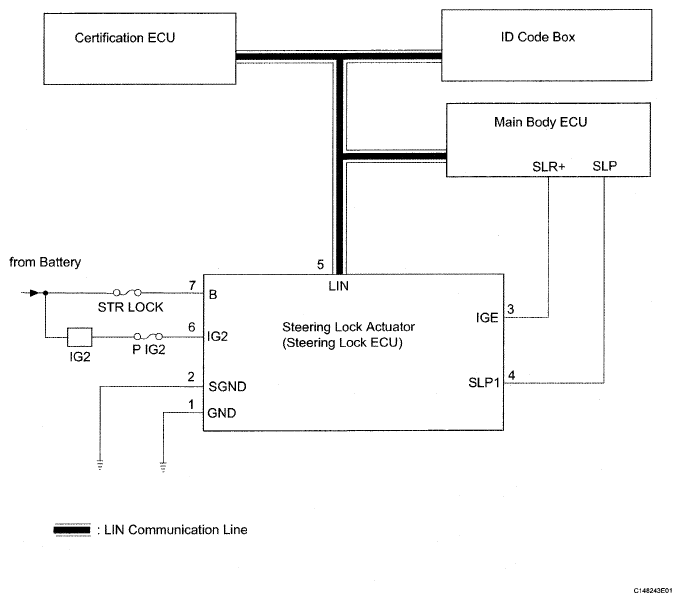

System Diagram
Input and output signals of each ECU
| Transmitting ECU | Receiving ECU | Signals | Communication Method |
|---|---|---|---|
| Main Body ECU | Steering Lock ECU | Power supply status (to steering lock motor) | LIN |
| Steering Lock ECU |
|
Sleep available status | LIN |
| Steering Lock ECU |
|
Lock / Unlock sensor status | LIN |
| Steering Lock ECU |
|
Steering lock status | LIN |
| Steering Lock ECU |
|
Motor control status | LIN |
| Steering Lock ECU |
|
Diagnostic response status | LIN |
| Steering Lock ECU |
|
Lock / Unlock sensor malfunction | LIN |
| Steering Lock ECU |
|
Power supply malfunction (to steering lock motor) | LIN |
| Steering Lock ECU |
|
Motor driver malfunction | LIN |
| Steering Lock ECU |
|
Lock bar (stuck) status | LIN |
| Steering Lock ECU |
|
Push button start function status | LIN |
| Steering Lock ECU |
|
Lock / Unlock relay drive status | LIN |
| Steering Lock ECU |
|
Engine start control status | LIN |
