2008 Lexus LS 460LFACTORY OEM SERVICE PROCEDURE

Problem Symptoms Table

HINT:

  • Use the table below to help determine the cause of the problem symptom. The potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.
  • Inspect the fuses and relays related to the system before inspecting the suspected areas below.

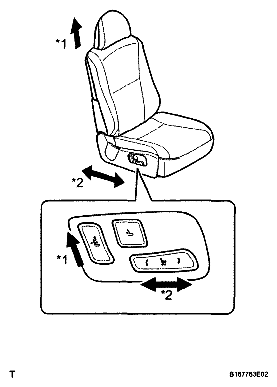

    Fig 1: Checking Seat Sliding Operation
    G04952418Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Front Power Seat Control System

FRONT POWER SEAT CONTROL SYSTEM - PROBLEM SYMPTOMS CHART

Symptom Suspected Area Refer To
Front Power Seat does not Operate with Front Power Seat Switch Front power seat switch FRONT POWER SEAT DOES NOT OPERATE WITH FRONT POWER SEAT SWITCH
Harness or connector FRONT POWER SEAT DOES NOT OPERATE WITH FRONT POWER SEAT SWITCH
Power Seat Position is not Memorized Front power seat switch LH POWER SEAT POSITION IS NOT MEMORIZED
Seat memory switch POWER SEAT POSITION IS NOT MEMORIZED
Front door ECU LH POWER SEAT POSITION IS NOT MEMORIZED
Harness or connector POWER SEAT POSITION IS NOT MEMORIZED
Power Seat does not Return to Memorized Position Front power seat switch LH POWER SEAT DOES NOT RETURN TO MEMORIZED POSITION
Front Passenger Seat Full Front and Return Operation does not Function with Power Seat Switch Rear power seat module switch FRONT PASSENGER SEAT FULL FRONT AND RETURN OPERATION DOES NOT FUNCTION WITH POWER SEAT SWITCH
Front power seat switch FRONT PASSENGER SEAT FULL FRONT AND RETURN OPERATION DOES NOT FUNCTION WITH POWER SEAT SWITCH
Power seat switch assembly FRONT PASSENGER SEAT FULL FRONT AND RETURN OPERATION DOES NOT FUNCTION WITH POWER SEAT SWITCH
Harness or connector FRONT PASSENGER SEAT FULL FRONT AND RETURN OPERATION DOES NOT FUNCTION WITH POWER SEAT SWITCH
Front Passenger Seat Ottoman Linked Operation does not Function with Rear Power Seat Switch Rear power seat module switch FRONT PASSENGER SEAT OTTOMAN LINKED OPERATION DOES NOT FUNCTION WITH REAR POWER SEAT SWITCH
Front power seat switch RH FRONT PASSENGER SEAT OTTOMAN LINKED OPERATION DOES NOT FUNCTION WITH REAR POWER SEAT SWITCH
Wireless Transmitter Memory Function does not Operate Front power seat switch LH WIRELESS TRANSMITTER MEMORY FUNCTION DOES NOT OPERATE
Wireless-linked Return Function does not Operate Front power seat switch LH WIRELESS-LINKED RETURN FUNCTION DOES NOT OPERATE
Buzzer Sounds During Manual Operation Initialization CUSTOMIZE PARAMETERS
