2008 Lexus LS 460LFACTORY OEM SERVICE PROCEDURE

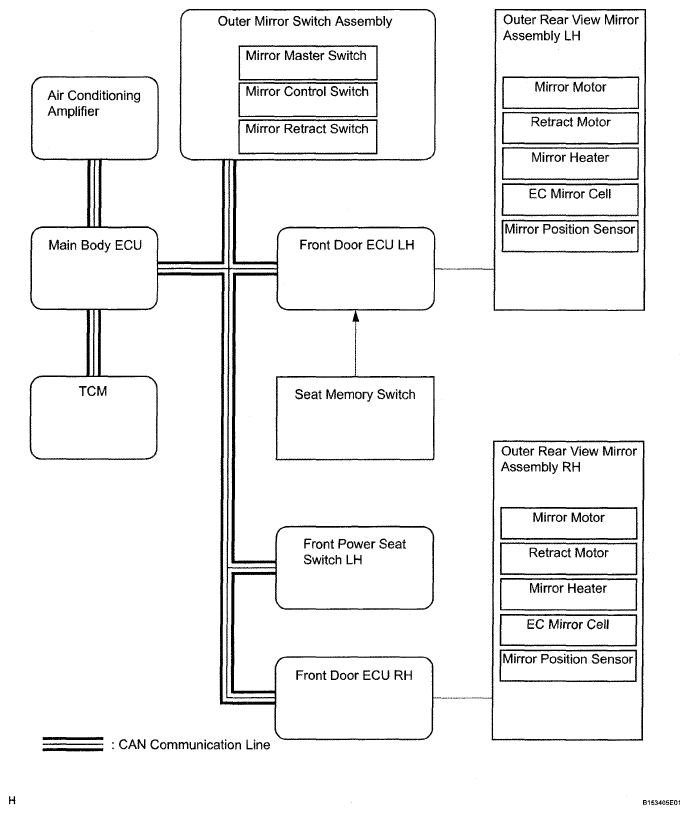

System Diagram
Communication Table:
COMMUNICATION CHART
| Sender | Receiver | Signal | Line |
|---|---|---|---|
| Outer mirror switch assembly | Front door ECU LH |
|
CAN |
| Front door ECU RH |
|
||
| Air conditioning amplifier | Front door ECU LH | Mirror heater operation request signal | |
| Front door ECU RH | Mirror heater operation request signal | ||
| TCM | Front door ECU LH | Reverse signal | |
| Front door ECU RH | Reverse signal |
