Customize Parameters

HINT:

The following items can be customized.

1. Connect the Techstream to the DLC3.
2. Turn the engine switch ON (IG).
3. Turn the Techstream.
4. Enter the following menus: Customize Setting.
5. Select the setting by referring to the table below.

1. SMART ACCESS SYSTEM WITH PUSH-BUTTON START (for Starting)

   Smart Key/Access

   DEFAULT SETTING TABLE



   Display	Default	Contents	Setting
   Ignition Available Area	ALL	Function to choose the available area for key to start engine and cancel the steering lock.	FRONT/ALL

2. POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM

   Tilt & Telesco

   DEFAULT SETTING TABLE



   Display	Default	Contents	Setting
   Autoaway / Return function	ON	ON/OFF of the auto away / return function	ON/OFF

3. AIR CONDITIONING SYSTEM

   Air Conditioner

   DEFAULT SETTING TABLE



   Display	Default	Contents	Setting
   Set Temperature Shift	Normal	To control with the shifted temperature against the display temperature	+2°C /+1°C / Normal /-1°C/-2°C
   Air Inlet Mode	Automatic	In case of turning the A/C ON when you desire to make the compartment cool down quickly, this is the function to change the mode automatically to RECIRCULATION mode	Manual/Automatic
   Compressor Mode	Automatic	Function to turn the A/C ON automatically by pressing the AUTO button when the blower is ON and the A/C is OFF	Manual/Automatic
   Compressor/Air Inlet DEF operation	Link	Function to turn the A/C ON automatically linked with the FRONT DEF button when A/C is OFF	Normal/Link
   Evaporator Control	Automatic	Function to set the evaporator control to the AUTOMATIC position (Automatic) to save power, or to the coldest position (Manual) to dehumidify the air and to prevent the windows from fogging up	Manual/Automatic
   Emission Gas Sensor Shift	Normal	Function to change the sensitivity of the exhaust gas sensor	Much More/More/Little More/Normal/Little Less/Less/Much Less
   Button Press Buzzer	ON	Function to sound a buzzer when button is pressed	OFF/ON
   Foot/DEF Auto Mode	ON	Function to turn the airflow from FOOT / DEF ON automatically when AUTO MODE is ON	OFF/ON
   Foot/DEF Automatic Blow Up Function	ON	Function to change the blower level automatically when the defroster is ON	OFF/ON
   Filter Sensor	Normal	Function to change the sensitivity of the air conditioning filter clogging sensor	Less/Normal/More
   Ambient Temperature Shift	Normal	Function to control the shifted ambient temperature in relation to the displayed ambient temperature	+3°C / +2°C / +1°C / Normal / -1°C / -2°C / -3°C

4. THEFT DETERRENT SYSTEM

   Security

   DEFAULT SETTING TABLE



   Display (Item)	Default	Contents	Setting
   Warning by Horn	ON	Function that allows vehicle horns and theft deterrent horn to be used as warning device.	ON / OFF
   Passive Mode (Security System)	OFF	Passive arming mode is a function that switches theft deterrent system from arming preparation state to armed state 30 seconds after key is not inside vehicle and driver side door is closed. In passive arming mode, theft deterrent system will judge that a theft is taking place and switch to alarm sounding state if one of the following operations are not performed within 14 seconds (see entry delay below) after door is opened: Unlock any door by key or wireless operation Turn engine switch ON (IG)	ON / OFF
   Entry Delay Time	14s	Function that changes entry delay time (time before warning starts) for PASSIVE ARMING MODE	0s/14s/30s

5. LIGHTING SYSTEM

   Illuminated Entry

   DEFAULT SETTING TABLE



   Display	Default	Contents	Setting
   I/L when ACC OFF	ON	Function to light the interior light when the engine switch is operated from ON (IG or ACC) to OFF	ON / OFF
   Lighting Time	15s	Function to change the lighting time after closing the door. (It will quickly fade out in case of turning the engine switch ON (IG))	7.5s/15s/30s
   Light Control	ON	Function to light up door inside handle light when the engine switch is ON (IG) and shift position is not P	ON / OFF
   I/L ON W/Door Key Unlock	ON	Function to light the interior light, etc. when the door is unlocked with a transmitter, door key or door lock control switch.	ON / OFF
   Mirr-Foot-Lgt Approached	ON	Door mirror foot light (when approaching vehicle)	ON / OFF
   Mirr-Foot-Lgt Unlocked	ON	Door mirror foot light (when unlocking doors)	ON / OFF
   Mirr-Foot-Lgt w/Master SW	ON	Door mirror foot light (when manually unlocking doors)	ON / OFF
   S-Belt-Bkl-Lgt/Door Open	ON	Seat belt buckle illumination (when door is open)	ON / OFF
   S-Belt-Bkl-Lgt/ACC OFF	ON	Seat belt buckle illumination (when electrical accessories are OFF)	ON / OFF
   Mirror Foot Light Time	15s	Door mirror foot light illumination duration	0s/7.5s/15s/30s
   Room Light when Aprchd	ON	Dome light illumination (when approaching vehicle)	ON / OFF
   Inside Foot Light	ON	Interior foot light illumination	ON / OFF
   Center Console Spot Light	ON	Center console spot light	ON / OFF

   Light Control

   DEFAULT SETTING TABLE



   Display	Default	Contents	Setting
   Light Auto OFF Delay	30s	Function to keep on lighting the headlight for a certain period of time after closing all the doors with the engine switch turned from ON (IG) to off under the condition that the light control switch is at HEAD or AUTO with the headlight ON	OFF / 30s / 60s / 90s

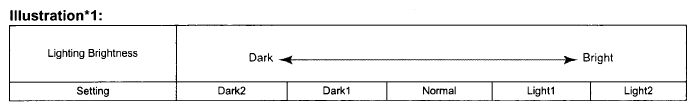

   Sensitivity	Normal	Function to adjust the sensitivity of lighting illumination*1.	Light2 / Light1 / Normal / Dark1 / Dark2
   Disp Ex ON Sen	NORMAL	Changes brightness when lowering lights such as combination meter indicator light, A/C indicator light, and clock light. Refer to the graphic*2.	LIGHT2 / LIGHT1 / NORMAL / DARK1/DARK2
   Disp Ex OFF Sen	NORMAL	Changes brightness when canceling lowering lights such as combination meter indicator light, A/C indicator light, and clock light. Refer to the graphic*3.	LIGHT2 / LIGHT1 / NORMAL / DARK1/DARK2
   DRL Function	ON	DRL control	ON / OFF
   HINT: The sensitivity adjustment may be difficult to confirm. Check by driving the customer's vehicle.

   Fig 1: Identifying Light Adjusting Table (1 Of 3)
