Inspection Procedure

1. Disconnect the steering pad switch connector and spiral cable connector
2. Measure the resistance according to the value(s) in the table below

   Standard Resistance

   STANDARD RESISTANCE SPECIFICATION



   Tester Connection	Condition	Specified Condition
   J24-2 (ECC) - Body ground	Always	Below 1 Ω

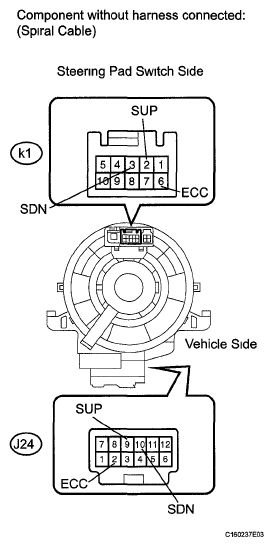

Fig 1: Identifying J24 Spiral Cable Connector
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to Next Step

1. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   STANDARD RESISTANCE SPECIFICATION



   Tester Connection	Condition	Specified Condition
   J24-2 (ECC) - k1-6 (ECC)	Always	Below 1 Ω
   J24-9 (SUP) - k1-2 (SUP)	Always	Below 1 Ω
   J24-10 (SDN) - k1-3 (SDN)	Always	Below 1 Ω

Fig 2: Identifying Steering Pad Switch Connector Terminal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE SPIRAL CABLE SUB-ASSEMBLY

OK: Go to Next Step

1. Disconnect the switch wire connector from the transmission shift switch.
2. Measure the resistance between each terminal when the paddle shift is moved to each position.

   Standard Resistance

   STANDARD RESISTANCE SPECIFICATION



   Tester Connection	Paddle Shift Position	Specified Condition
   SUP - ECC	Pull continuously "+" (Up shift)	Below 1 Ω
   	Release "+" (Up shift)	10 kΩ or higher
   SDN - ECC	Pull continuously "-" (Down shift)	Below 1 Ω
   	Release "-" (Down shift)	10 kΩ or higher

   Fig 3: Identifying Transmission Shift Switch Connector Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE TRANSMISSION SHIFT SWITCH ASSEMBLY

OK: Go to Next Step

1. Connect the switch wire connector to the transmission shift switch.
2. Measure the resistance between each terminal when the paddle shift is moved to each position.

   Standard Resistance

   STANDARD RESISTANCE SPECIFICATION



   Tester Connection	Paddle Shift Position	Specified Condition
   k1-2 (SUP) - k1-6 (ECC)	Pull continuously "+" (Up shift)	Below 1 Ω
   	Release "+" (Up shift)	10 kΩ or higher
   k1-3 (SDN) - k1-6 (ECC)	Pull continuously "-" (Down shift)	Below 1 Ω
   	Release "-" (Down shift)	10 kΩ or higher

   Fig 4: Identifying K1 Spiral Cable Connector Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: Go to Next Step

1. Connect the spiral cable connector and steering pad switch connector.
2. Disconnect the ECM connector.
3. Disconnect the transmission control switch connector.
4. Measure the resistance according to the value(s) in the table below when the paddle shift is moved to each position.

   Standard Resistance

   STANDARD RESISTANCE SPECIFICATION



   Tester Connection	Paddle Shift Position	Specified Condition
   A6-8 (SFTU) - Body ground	Pull continuously "+" (Up shift)	Below 1 Ω
   	Release "+" (Up shift)	10 kΩ or higher
   A6-7 (SFTD) - Body ground	Pull continuously "-" (Down shift)	Below 1 Ω
   	Release "-" (Down shift)	10 kΩ or higher

   Fig 5: Identifying A6 ECM Connector Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE  (See PROBLEM SYMPTOMS TABLE  )
