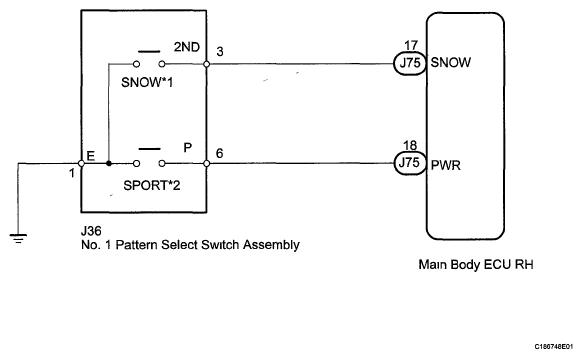

Pattern Select Switch Circuit: Wiring Diagram
HINT:
- *1. Pattern Select Switch (SNOW Switch)
When the SNOW switch is pushed, the switch contact is made and SNOW mode is selected.
To cancel SNOW mode, push the SNOW switch once again.
SNOW mode is automatically cancelled when the engine switch is turned off.
- *2: Pattern Select Switch (SPORT Switch)
When the SPORT switch is pushed, the switch contact is made and SPORT mode is selected.
To cancel SPORT mode, push the SPORT switch once again.
SPORT mode is automatically cancelled when the engine switch is turned off
