2008 Lexus IS FFACTORY OEM SERVICE PROCEDURE
Manual Shifting Test
- MANUAL SHIFTING TEST
HINT.
- Using this test, it can be determined whether a problem is in an electrical circuit or if it is a mechanical problem in the transmission.
- If any abnormalities are found in the following test, the problem is in the transmission itself.

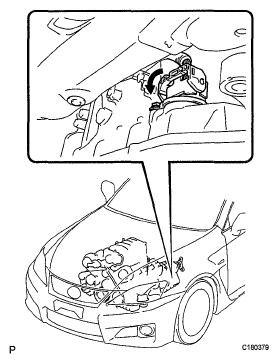

- Disconnect the connector of the transmission wire
HINT.
It is possible to deactivate the electrical shift control by disconnecting the transmission wire The gears can then be changed mechanically with the shift lever.
- Drive with the transmission wire disconnected. Move the shift lever to each position to check whether the gear changes as shown in the table belowSHIFT LEVER POSITION
Shift Lever Position Gear P P R R D 3rd
No Shift (Gears will not change) - Connect the connector of the transmission wire.
- Clear the DTCs (See DTC CHECK / CLEAR ).
