2008 Lexus IS FFACTORY OEM SERVICE PROCEDURE

Installation (To 12/2010): Installation

WARNING: This page is about a different car, the 2011 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL ECM
1. Install the 2 ECM brackets with the 4 screws.

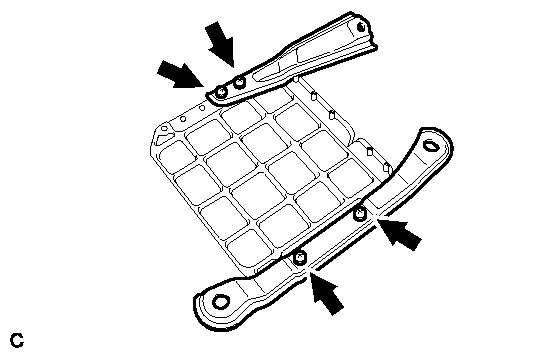

  Fig 1: Locating ECM Brackets Screws
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 3.0 N*m (31 kgf*cm, 27 in.*lbf)
2. Connect the 2 ECM connectors.
  NOTE:
  When connecting the connectors, make sure that dirt, water or other foreign matter is not stuck between the connectors and other parts.
