2008 Lexus IS FFACTORY OEM SERVICE PROCEDURE

Knock Sensor: Installation

  1. INSTALL KNOCK CONTROL SENS OR

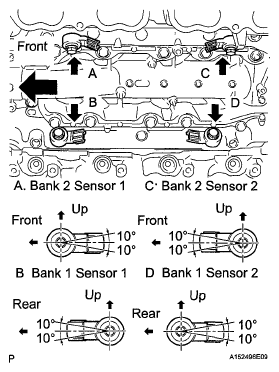

    1. Install the 4 knock control sensors with the 4 bolts so that the sensors are angled as shown in the illustration

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

      NOTE: The acceptable installation angle of the knock control sensors is within +/-10° from the horizontal position.
    2. Connect the 4 knock control sensor connectors.
      Fig 1: Identifying Knock Control Sensors With Bolts
      G05751979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL CASE SEPARATOR
    1. Install the case separator with the 4 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

      Fig 2: Locating Case Separator Bolts
      G04943090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the fuel pressure sensor connector.
      3. Fig 3: Identifying Fuel Pressure Sensor Connector
      G04943089Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL NO. 4 FUEL PIPE SUB-ASSEMBLY  (See INSTALLATION )
  4. INSTALL NO. 2 ENGINE COVER SUB-ASSEMBLY LH  (See INSTALLATION )
  5. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY  (See INSTALLATION )
  6. INSTALL INTAKE AIR SURGE TANK ASSEMBLY
    1. Install the intake air surge tank assembly (See INSTALLATION )
  7. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See INITIALIZATION ).
  8. INSPECT FOR FUEL LEAK  (See ON-VEHICLE INSPECTION )
