Fuel Pressure Sensor: Installation
- PRECAUTION CAUTION:
- Do not smoke or work near an open flame when handling the fuel system.
- Keep gasoline away from rubber or leather parts.
- Do not allow fuel to spray when removing the pipe between the high pressure side fuel pump and the fuel injector. The fuel in the pipe is highly pressurized.
- INSTALL FUEL PRESSURE SENSOR
- Install a new gasket to the fuel pressure sensor.

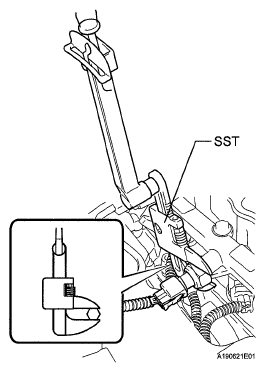

- Using SST, install the fuel pressure sensor to the fuel delivery pipe
SST 09922-10010
Torque: without SST
44 N*m (449 kgf*cm, 32 ft.*lbf)
with SST
40 N*m (409 kgf*cm, 30 ft.*lbf)
