Throttle Body: Inspection

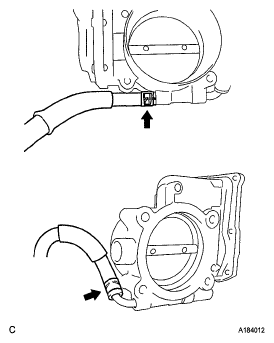

- INSPECT THROTTLE BODY ASSEMBLY
- Check that the throttle valve opens and closes smoothly
- Check that there is no carbon accumulated around the throttle plate.
- Measure the resistance according to the value(s) in the table below.
Standard Resistance
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Condition Specified Condition 1 (M-) - 2 (M+) 20°C (68°F) 0.3 to 100 Ω If the result is not as specified, replace the throttle body.
