Mass Air Flow Meter: Inspection
- INSPECT MASS AIR FLOW METER

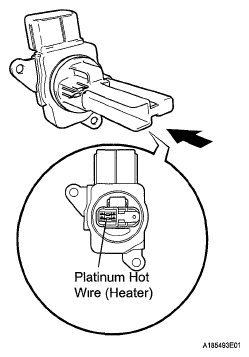

- Perform a visual check for any foreign matter on the platinum hot wire (heater) of the mass airflow meter shown in the illustration
OK: There is no foreign material.
If the result is not as specified, replace the mass air flow meter.
- Measure the resistance between the terminals
Specified Resistance
TESTER CONNECTION SPECIFIED CONDITION CHARTTester Connection Condition Condition 1 (THA) - 2 (E2) -20°C (-4°F) 13.6 to 18.4 kΩ 20°C (68°F) 2.21 to 2 69 kΩ. 60°C (140°F) 0.49 to 0.67 kΩ If the result is not as specified, replace the mass air flow meter
- Perform a visual check for any foreign matter on the platinum hot wire (heater) of the mass airflow meter shown in the illustration
