Inspection Procedure
HINT
- Using the Techstream monitor results enables the EVAP (Evaporative Emission) system to be confirmed.
- Read freeze frame data using the Techstream The ECM records vehicle and driving condition information as freeze frame data the moment a DTC is stored. When troubleshooting, freeze frame data can be helpful in determining whether the vehicle was running or stopped, whether the engine was warmed up or not, whether the air fuel ratio was lean or rich, as well as other data recorded at the time of a malfunction
- CONFIRM DTC
- Turn the engine switch off and wait for 10 seconds
- Turn the engine switch on (IG)
- Turn the engine switch off and wait for 10 seconds
- Connect the Techstream to the DLC3.
- Turn the engine switch on (IG) and turn the Techstream ON
- Enter the following menus" Powertrain / Engine / Trouble Codes.
- Confirm DTCs and freeze frame data

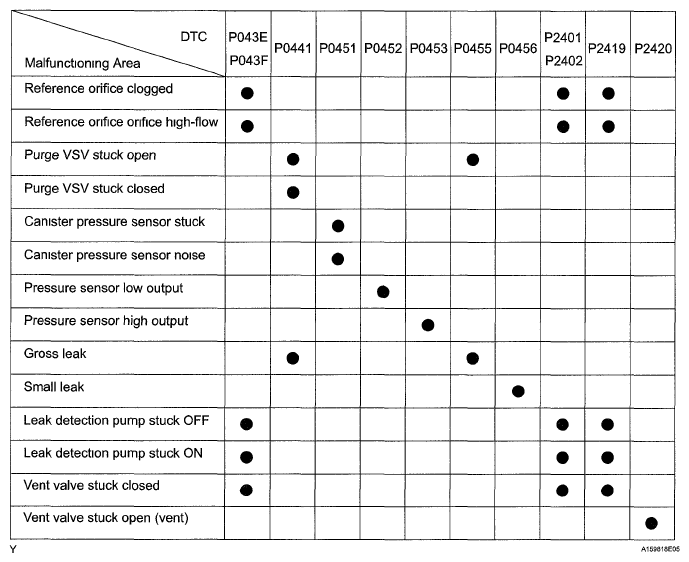

If any EVAP system DTCs are set, the malfunctioning area can be determined using the table below.
