2008 Lexus IS FFACTORY OEM SERVICE PROCEDURE

System Diagram

DIRECT LINE SIGNAL

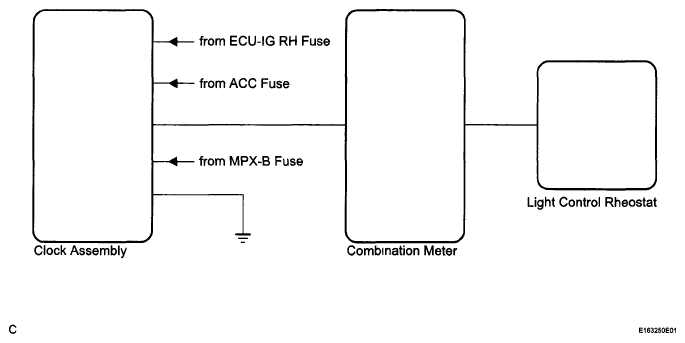

Fig 1: Clock System - System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INPUT AND OUTPUT SIGNALS OF THE CLOCK ASSEMBLY

Communication Signal	Sender	Receiver	Communication Line
Illumination	Combination Meter	Clock Assembly	Direct Line
