INTEGRATION CONTROL AND PANEL ASSEMBLY*1 OR MULTI-DISPLAY*2 (CLOCK)

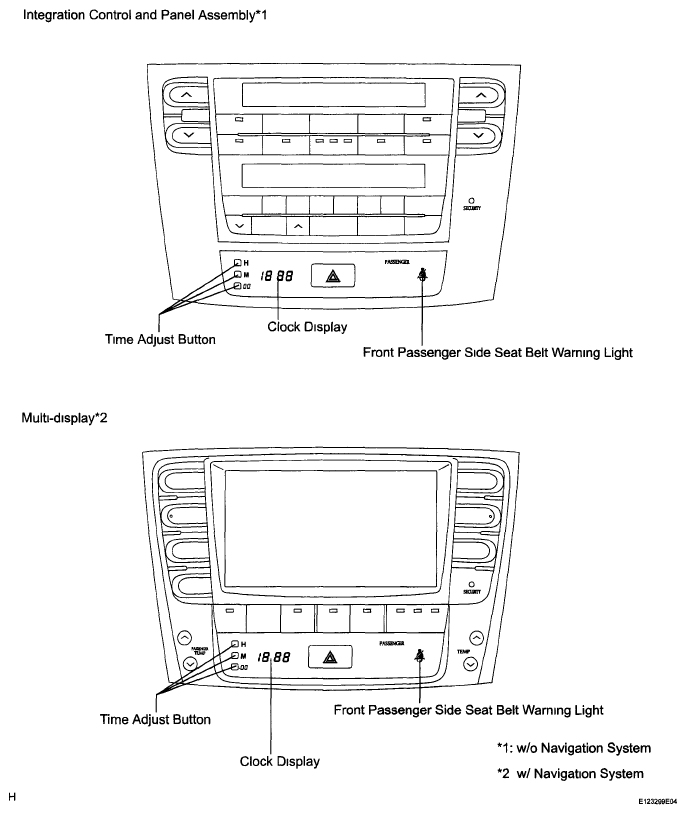

Fig 1: Identifying Integration Control And Panel Assembly*1 Or Multi-Display*2 (Clock)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Integration control and panel assembly*1 consists of three parts (passenger information display, clock display and heater control panel). These areas display the contents given in the table below.
Multi-display*2 consists of four parts (navigation display, passenger information display, clock display, and heater control panel). These areas display the contents given in the table below

ITEM DETAIL CHART

Item

Detail

Passenger information display

Displays the condition of the front passenger side seat belt OFF or ON

Heater control panel

Displays the condition of the heater control panel

Clock display

The time is always displayed In addition, the display dims according to the signal from the combination meter

Navigation display⁽¹⁾

Displays the navigation data

⁽¹⁾	w/ Navigation System
