Terminals Of Ecu
- CHECK A/C AMPLIFIER ASSEMBLY
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

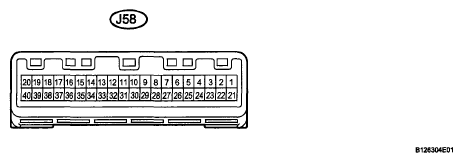

- Measure the voltage of the wire harness side connectors.
Standard Voltage
STANDARD VOLTAGETester Connection Wire Color Terminal Description Condition Specified Condition J58-3 (RDFG) - J58-20 (GND) B - W-B Rear Defogger Signal Engine switch on (IG) Rear defogger switch OFF 11 to 14 V - Measure the resistance of the wire harness side connectors.
Standard Resistance
STANDARD RESISTANCETester Connection Wire Color Terminal Description Condition Specified Condition J58-20 (GND) - Body ground W-B - Body ground Ground Always Below 1 Ω If the result is not as specified, there may be a malfunction on the wire harness side.
