Back Window Glass: Installation
- INSTALL NO. 2 BACK WINDOW GLASS STOPPER (for 2-piece Type)
- Using a brush or sponge, coat the application area of the No 2 back window glass stoppers with Primer G.NOTE:
- Do not apply too much primer.
- Allow the primer coating to dry for 3 minutes or more.
- Do not keep any of the opened Primer G for later use.
HINT
If an area other than specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.

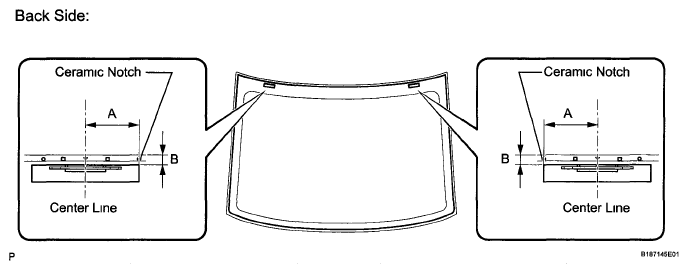

- Install 2 new No 2 back window glass stoppers onto the back window glass, as shown in the illustration
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard Dimension
STANDARD DIMENSIONArea Dimension A 40.0 mm (1.575 in.) B 17.0 mm (0.669 in.) HINT:
Only 2-piece type No. 2 back window glass stoppers are supplied. Use the 2-piece type stoppers even if a 1-piece type was used.
- Using a brush or sponge, coat the application area of the No 2 back window glass stoppers with Primer G.
- INSTALL NO. 1 BACK WINDOW GLASS STOPPER (for 2-piece Type)
- Install 2 new No. 1 back window glass stoppers to the vehicle body as shown in the illustration.
HINT:
Only 2-piece type No. 1 back window glass stoppers are supplied. Use the 2-piece type stoppers even if a 1-piece type was used.
- Install 2 new No. 1 back window glass stoppers to the vehicle body as shown in the illustration.
- INSTALL BACK WINDOW GLASS DAM
- Using a brush or sponge, coat the application area of back window glass dam with Primer G.NOTE:
- Allow the primer coating to dry for 3 minutes or more.
- Do not apply too much primer.

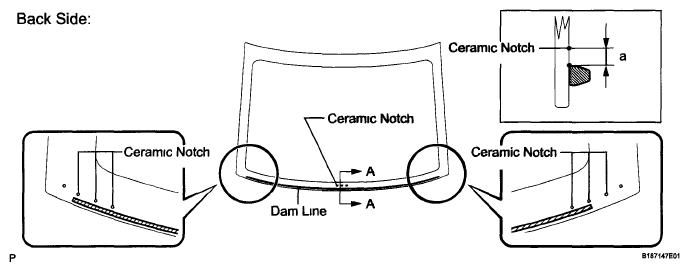

- Install a new dam, applying double-sided tape all the way around the glass except where the dam is installed, as shown in the illustration.
Standard Dimension
STANDARD DIMENSIONArea Dimension a 1.5 mm (0.0591 in.) NOTE:- Do not apply too much primer.
- Allow the primer coating to dry for 3 minutes or more.
- Do not keep any of the opened Primer G for later use.
HINT.
If an area other than specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries
- Using a brush or sponge, coat the application area of back window glass dam with Primer G.
- INSTALL NO. 1 BACK WINDOW MOLDING
- Using a brush or sponge, coat the application area of No 1 back window molding with Primer G.NOTE:
- Allow the primer to dry for 3 minutes or more.
- Do not keep any of the opened Primer G for later use.
- Do not apply too much primer.
HINT:
If an area other than specified is coated by accident, wipe off the primer with a clean piece of cloth before it dries.
- Install a new molding onto the back window glass as shown in the illustration.NOTE: Align the joint of the new molding with the ceramic notch.
- Using a brush or sponge, coat the application area of No 1 back window molding with Primer G.
