Inspection Procedure

1. Disconnect the vacuum hose from port F on the vacuum switching valve (for ACIS).
2. Connect the Techstream to the DLC3.
3. Start the engine.
4. Enter the following menus:/Engine and ECT/Active Test/Active the VSV for Intake Control. Operate the ACIS VSV.
5. Check the VSV air flow when switching the VSV.
   Fig 1: Performing Active Test By Techstream (Vacuum Switching Valve)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   OK

   TESTER CONDITION AND SPECIFIED CONDITION



   Tester Condition	Specified Condition
   VSV is ON	Air from port E flows out through port F
   VSV is OFF	Air from port E flows out through the air filter

NG: Go to step  4

OK: Go to Next Step

1. Check the condition of the vacuum hoses between the intake manifold, vacuum switching valve (for ACIS) and IACV.
   1. The vacuum hoses are connected securely.
   2. The vacuum hoses are not cracked or damaged

      OK: The vacuum hoses are connected securely and not cracked or damaged.

NG: REPAIR OR REPLACE VACUUM HOSES

OK: Go to Next Step

1. Inspect the intake air control valve (See INSPECTION ).

NG: REPLACE INTAKE AIR CONTROL VALVE

OK: REPLACE ECM

1. Check that air flows from port E to the air filter.
2. Apply positive (+) battery voltage across the terminals.
3. Check that air flows from port E to port F.

NG: REPLACE VACUUM SWITCHING VALVE

Fig 2: Inspecting Vacuum Switching Valve (Operation)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK: Go to Next Step

1. Check the wire harness between the VSV for ACIS and connector the ECM connector.
   1. Disconnect the V9 VSV for ACIS connector.
   2. Disconnect the E5 and E7 ECM connectors.
   3. Measure the resistance between the wire harness side connectors.

      Standard resistance (Check for open)

      STANDARD RESISTANCE



      Tester Connection	Specified Condition
      VSV for ACIS (V9-2) - ACIS (E5-33)	Below 1 Ω

      Standard resistance (Check for short)

      STANDARD RESISTANCE



      Tester Connection	Specified Condition
      VSV for ACIS (V9-2) or ACIS (E5-33) - E1 (E7-1)	10 kΩ or higher

2. Check the wire harness between the VSV for ACIS connector and the EFI relay.
   1. Disconnect the V9 VSV for ACIS connector.
   2. Remove the EFI relay from the engine room R/B
   3. Measure the resistance between the wire harness side connectors.

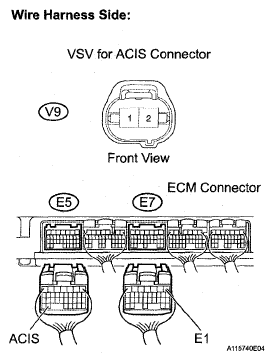

      Fig 3: Checking Harness And Connector (Vacuum Switching Valve - ECM, Vacuum Switching Valve - EFI No. 2 Fuse)

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard resistance (Check for open)

      STANDARD RESISTANCE



      Tester Connection	Specified Condition
      VSV for ACIS (V9-1) - EFI relay terminal 3 of R/B	Below 1 Ω

NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

OK: REPLACE ECM
